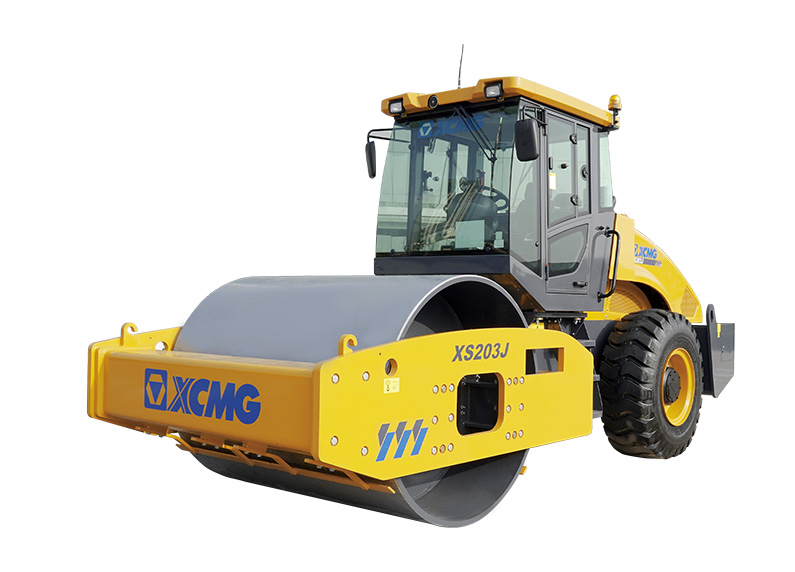

XS203J
XS203J is suitable to the compaction operation ofpebbles,sandy soils,moraine soil,blasting rockand clayey soil,as well as the compaction of con-crete and stabilized soil base materials in variouslarge projects.It is the ideal compaction equipmentfor the construction of high-grade highways,air-ports,harbors,dams and industrial constructionsites.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Shangchai |
| Rated power | kW | 118 |
| Rated speed | r/min | 1800 |
| Emission | – | Stage Ⅱ |
| Operating Weight | kg | 20000 |
| Working width | mm | 2130 |
| Dimensions | mm | 6,320 x 2,300 x 3,200 |
| Working speed | km/h | 2.95、5.78、9.4 |
| Gradeability | % | 35 |
| Vibration frequency | Hz | 28/33 |
