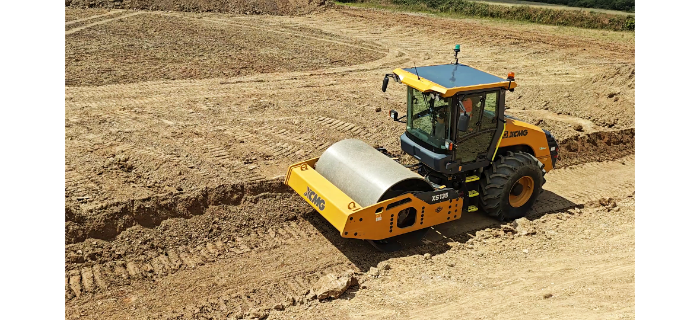

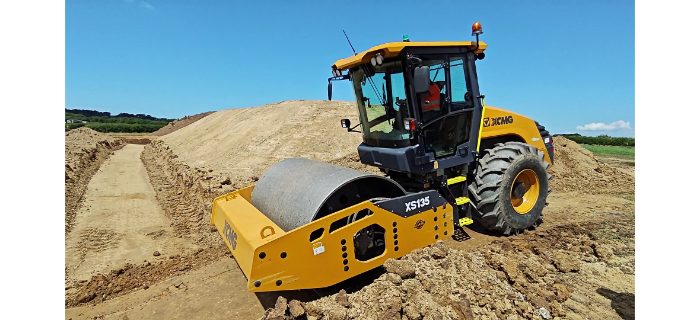

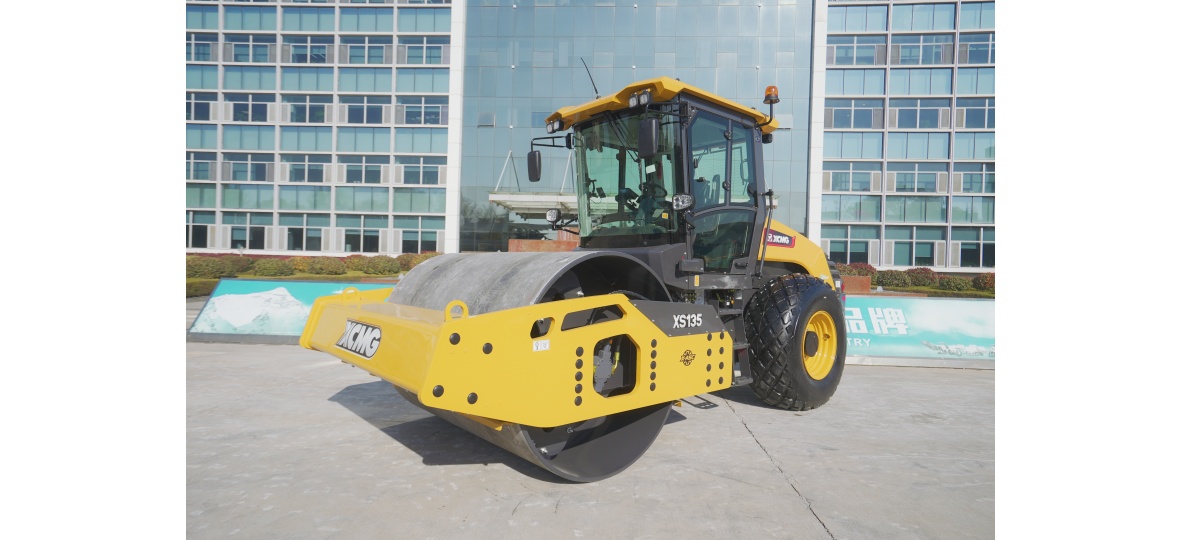

XS135
XS135/XS135PD is a heavy-type, self-propelled, full hydraulic double drive single drum vibratory roller which is special designed for European market. This product fulfills the requirements of the European Stage V emission standards. Featuring large exciting force, high compaction efficiency and good compaction quality, it is widely used in compaction work on base layer, subbase layer and rock fill for roads, railways, airports, harbors, dams and industrial construction sites.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Cummins |
| Rated power | kW | 115 |
| Rated speed | r/min | 2200 |
| Emission | – | EU Stage V/T4F |
| Operating Weight | kg | 13400 |
| Working width | mm | 2130 |
| Dimensions | mm | 5,990 x 2,300 x 2,990 |
| Working speed | km/h | 0～11.0 |
| Gradeability | % | 50 |
| Vibration frequency | Hz | 30/35 |
