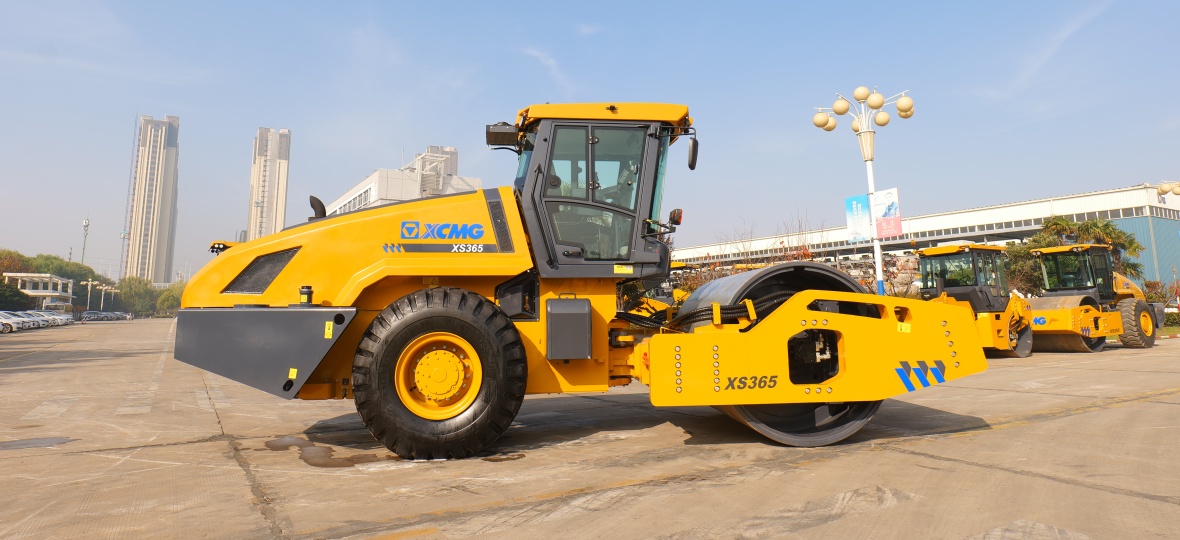

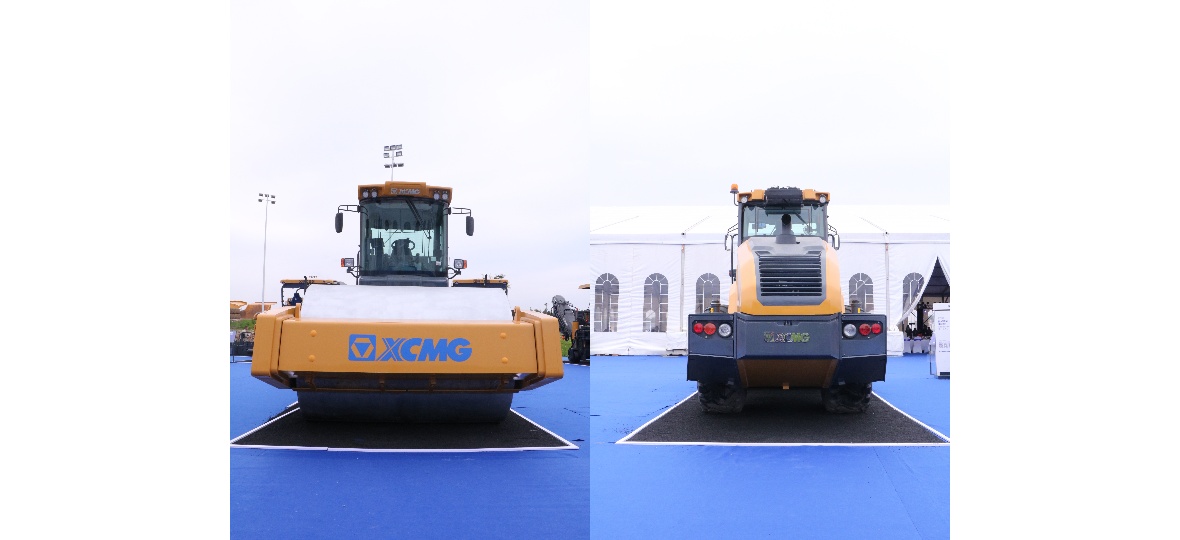

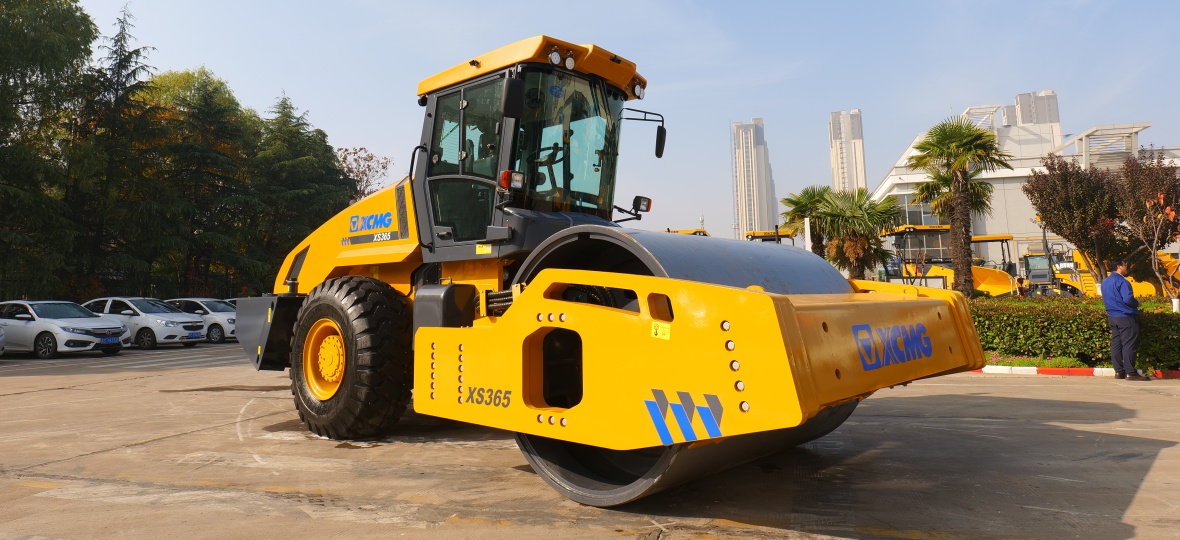

XS365
XS365 is super-tonnage full hydraulic single drum vibratory roller positioning in large depth rock-fill compaction, extra thicklayer compaction as well as conventional layer compaction. It is the ideal compaction equipment for dam rock-fill, ultra-thick hydraulic bonding layer, highway base course and subgrade compaction. This machine uses the highpower engine and has been through many adaptive designs regarding the rock fill dam compaction, can satisfy the dam construction request better.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Weichai |
| Rated power | kW | 276 |
| Rated speed | r/min | 2200 |
| Emission | – | Stage Ⅲ |
| Operating Weight | kg | 36000 |
| Working width | mm | 2400 |
| Dimensions | mm | 7,592 x 2,900 x 3,478 |
| Working speed | km/h | 0～4；0～5；0～5.5；0～10.4 |
| Gradeability | % | 40 |
| Vibration frequency | Hz | 26/31 |
Gallery
