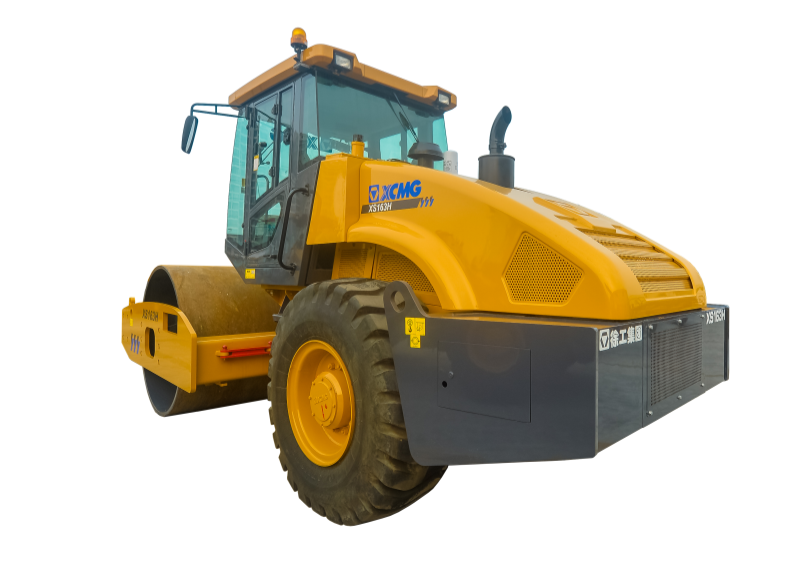

XS163H
XS163H vibratory road roller is a heavy-duty self-propelled vibratory road roller of high cost-performance advantage and market influence developed timely by our company to adapt to the need of market competition and meet the urgent needs of extensive users. With high static linear load and exciting force, this product is applicable for the compacting operations of pebble, sandy soil, moraine soil, blasted rock, and clay as well as for the compacting of concrete and stabilized soil foundation materials in various large projects. With the maximum applied depth in excess of 1.0m, it’s an important compacting equipment in the large engineering constructions, including expressways, railways, mines, and ports.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Shangchai |
| Rated power | kW | 110 |
| Rated speed | r/min | 2200 |
| Emission | – | Stage Ⅱ |
| Operating Weight | kg | 16000 |
| Working width | mm | 2130 |
| Dimensions | mm | 6,150×2,300×3,200 |
| Working speed | km/h | 0~7.3 |
| Gradeability | % | 30 |
| Vibration frequency | Hz | 28/33 |
