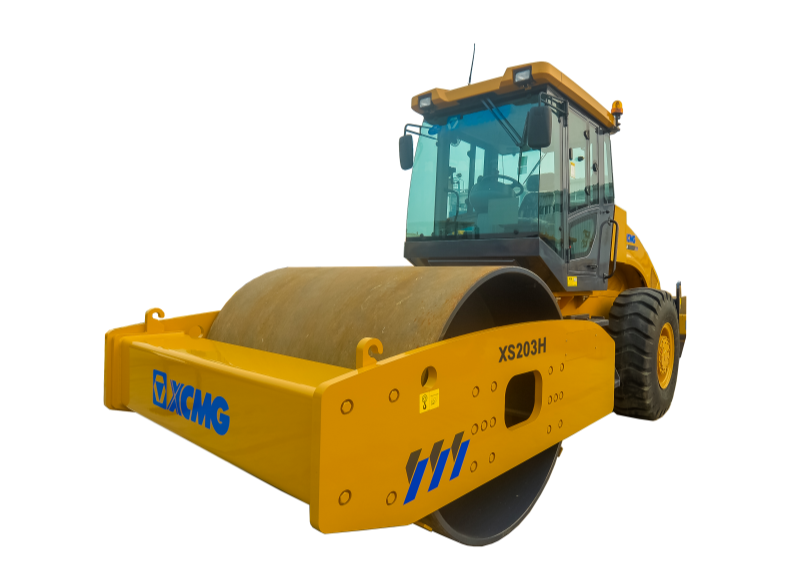

XS203H
XS203H is a type of highly efficient and energy-saving super heavy mechanical single drum vibratory roller independently developed by XCMG Construction Machinery Co., Ltd. The overall parameters of the product are reasonably matched. The applied China-III Shangchai 7H electrically controlled high pressure common rail engine, hydraulic damping control technology and hydrostatic transmission technology are used to improve the operating comfort.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Shangchai |
| Rated power | kW | 140 |
| Rated speed | r/min | 2200 |
| Emission | – | Stage Ⅲ |
| Operating Weight | kg | 20000 |
| Working width | mm | 2130 |
| Dimensions | mm | 6,320×2,300×3,200 |
| Working speed | km/h | 0-5.5;0-8.5 |
| Gradeability | % | 39 |
| Vibration frequency | Hz | 28/33 |
