XS115PDG

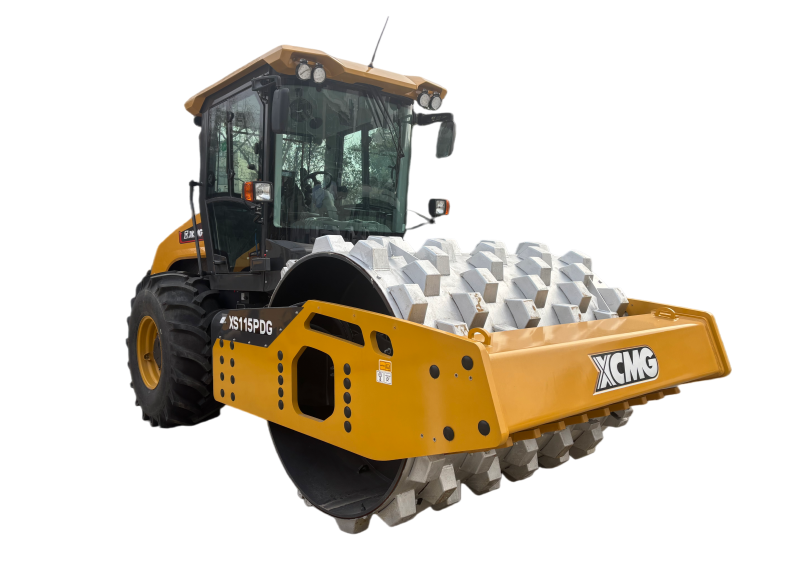

XS115PDG single drum vibratory roller is a double pump driven heavy duty, self-propelled, single drum, full hydraulic double drive single drum vibratory roller. The product meets the drain requirements of Stage V in Europe and T4f in North America. It has the characteristics of strong driving capacity, large exciting force, high compaction efficiency, good compaction quality, etc. It is widely used for compaction operation of foundation layer, sub-foundation layer and rock fill in highways, railways, airports, ports, dams and industrial construction sites.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Cummins |
| Rated power | kW | 115 |
| Rated speed | r/min | 2200 |
| Emission | – | EU Stage V/T4F |
| Operating Weight | kg | 11500(XS115G) / 13000(XS115PDG) |
| Working width | mm | 2130 |
| Dimensions | mm | 5,990 x 2,300 x 3,150 |
| Working speed | km/h | 0～11.00(XS115G) / 0～11.85(XS115PDG) |
| Gradeability | % | 65(XS115G) / 62(XS115PDG) |
| Vibration frequency | Hz | 30/35 |
