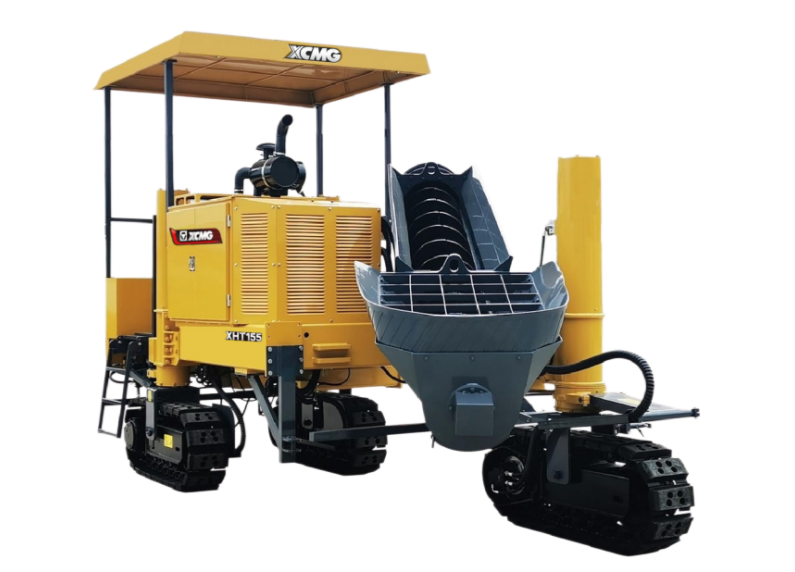

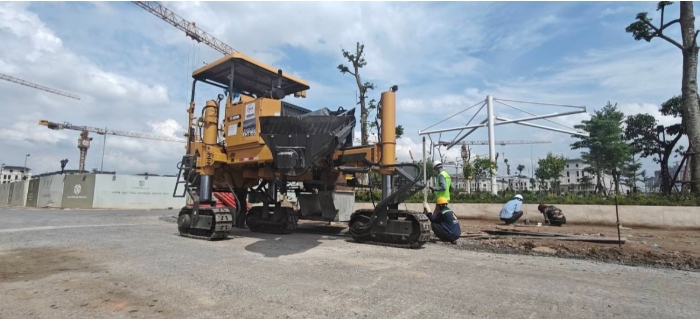

XHT155
XHT155 Spreading machines for slip form cement concrete is an independent developed special construction equipment for curbstone. To keep up with the high-speed development of domestic railway and highway construction, it improves substantially the construction speed and quality of cement concrete structure for all types of curbstone under various working conditions.This machine model features high power reserve, full electronic control, full hydraulic drive, three-crawler propelling as well as automatic steering and automatic leveling control system; It is able to complete whole working processes from conveying, tamping, paving, extrusion forming to screeding.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Paving Width | mm | 1800 |
| Max. Paving Thickness | mm | 1200 |
| Paving Speed | m/min | 0~10.5 |
| Engine | – | Weichai |
| Rated Power | kW/r/min | 73.5/2,300 |
| Transport Weight | kg | 10000 |
| Transport Dims. | mm | 5,400 x 2,150 x 2,700 |
