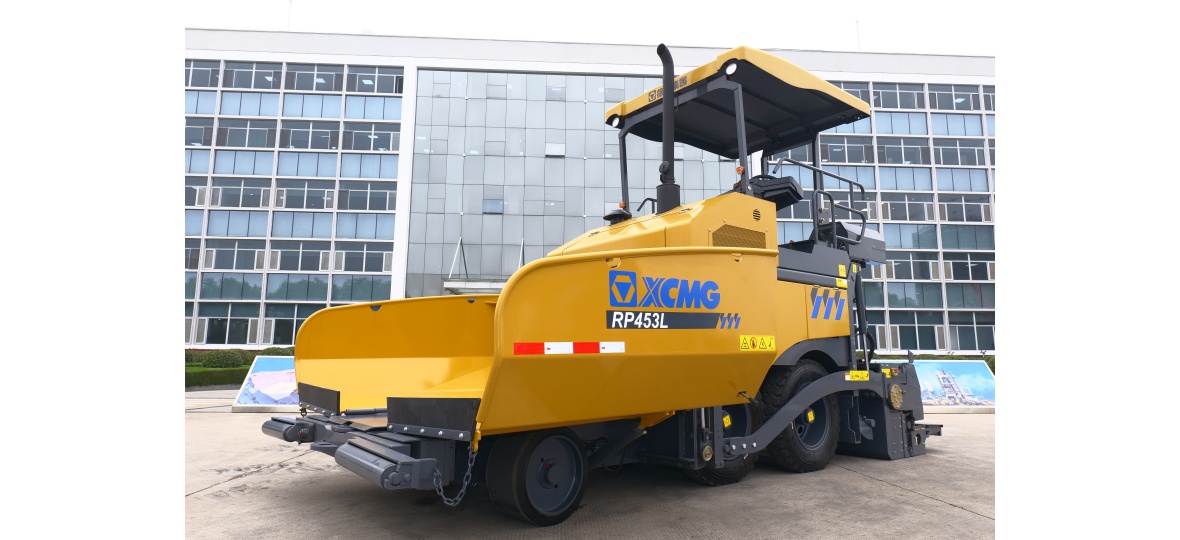

RP453L
RP453L paver is a small type hydraulically driven wheeled paver with a reinforced E340T hydraulic screed, paving width ranges from 1.8m to 4.5m, and an electric heating and tamper compaction device. The machine is equipped with four-wheel drive and self-differential ASC technology, making it highly resistant to load and anti-slip performance, and is widely used in asphalt paving construction of municipal roads and rural roads, and asphalt pavement maintenance construction of classified highway.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Basic paving width | m | 1.8～3.4 |
| Max. paving width | m | 4.5 |
| Max. paving thickness | mm | 260 |
| Working speed | m/min | 20 |
| Travel speed | km/h | 20 |
| Theoretical productivity | t/h | 240 |
| Hopper capacity | t | 12 |
| Diesel engine power | kW | 73.5 |
| Transportation dimensions | mm | 6260×1900×3009 |
| Total weight | t | 11.4～11.9 |
| Engine Manufacturer | – | SDEC |
| Engine Model | – | SCH4 |
| Emission | – | EU Stage Ⅲ |
Gallery
