RP603

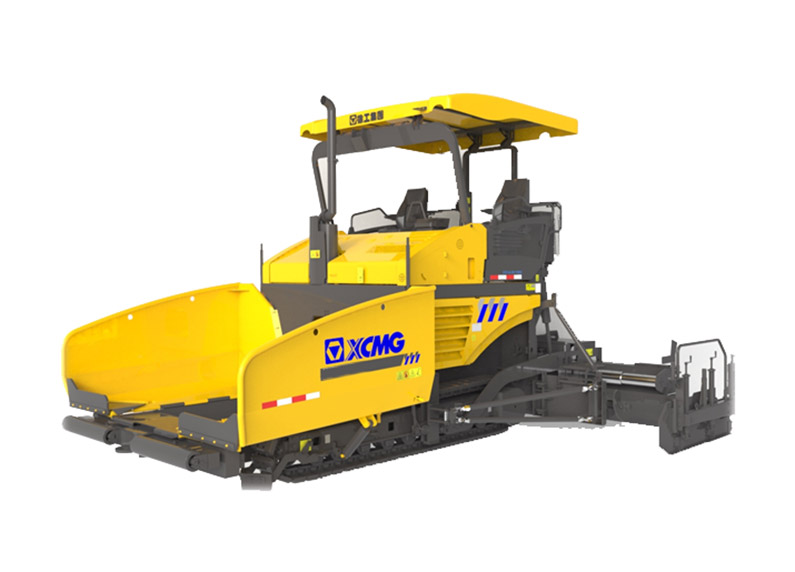

RP603 is a medium-sized full hydraulic tracked paver perfectly equipped with standard intelligent control system and user-friendly HMI. The standard classic E475T hydraulic extending screed has basic paving width ranging from 2.5m to 4.75m. With high working capacity and good paving stability, tt is widely used in classified highway construction worldwide, municipal road construction, classified highway maintenance, farms and dams paving construction, especially suitable for asphalt concrete material paving construction on classified highway.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Basic paving width | m | 2.5～5.0 |
| Max. paving width | m | 7 |
| Max. paving thickness | mm | 350 |
| Working speed | m/min | 20 |
| Travel speed | km/h | 3 |
| Theoretical productivity | t/h | 600 |
| Hopper capacity | t | 14 |
| Diesel engine power | kW | 129 |
| Transportation dimensions | mm | 6740×2630×3180 |
| Total weight | t | 20～21 |
| Engine Manufacturer | – | Cummins |
| Engine Model | – | QSB6.7 |
| Emission | – | EU Stage Ⅲ |
