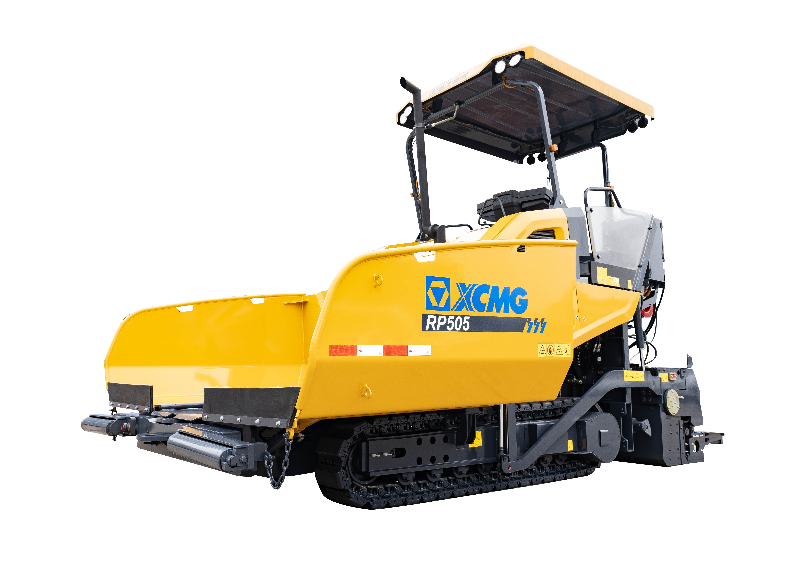

RP505
RP505 is a tracked paver with compact dimensions for high traffic ability, with reinforced E340T hydraulic extending screed with electric heating function and single tamper unit, a specially designed 250 bolt-on extension, its maximum working width reaches up to 5.0m. The machine features high mobility, excellent operation capacity and high construction efficiency, which is the preferred product for pavement, bicycle path, rural road maintenance and high-grade road paving operation.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Basic paving width | m | 1.8～3.4 |
| Max. paving width | m | 5 |
| Max. paving thickness | mm | 280 |
| Working speed | m/min | 28 |
| Travel speed | km/h | 4 |
| Theoretical productivity | t/h | 400 |
| Hopper capacity | t | 12 |
| Diesel engine power | kW | 104 |
| Transportation dimensions | mm | 5864×1925×3106 |
| Total weight | t | 12.5 |
| Engine Manufacturer | – | Cummins |
| Engine Model | – | QSF3.8 |
| Emission | – | EU Stage Ⅲ |
