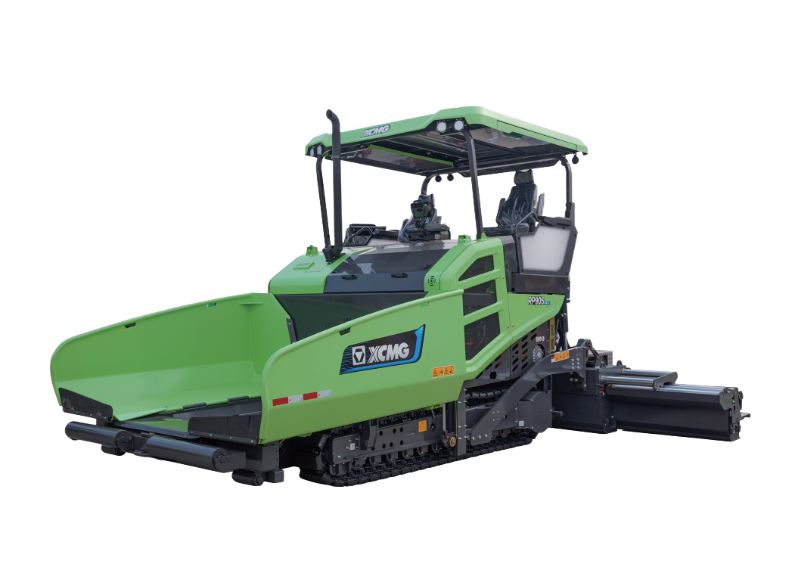

RP905HEV
RP905HEV paver utilizes a 150kW range extender and a 49.55kWh power battery to form a power system assembly,ensuringthe high power requirements of construction operations are met. It employs a domestic controller and 10.The machine is equipped with a 1-inch LCD screen, ultrasonic material levelsensing control, and electronic automatic leveling. It has a singlevibration eccentric vibration and DC electric heating hydraulic telescopic screed with a four-support cylinder suspension structure,hydraulic height adjustment, and arch adjustment. The driving left and right are independently driven, and constant speed automatic control technology is adopted.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Basic Paving Width | m | 3.0-6.0 |
| Max. Paving Width | m | 9 |
| Max. Paving Thickness | mm | 300 |
| Max. Paving Speed | m/min | 25 |
| Max. Working Speed | km/h | 4 |
| Max. Productivity | t/h | 1000 |
| Overall Dimension | mm | 7100*4000*3200 |
| Total Weight | t | 24 |
