XD120EP

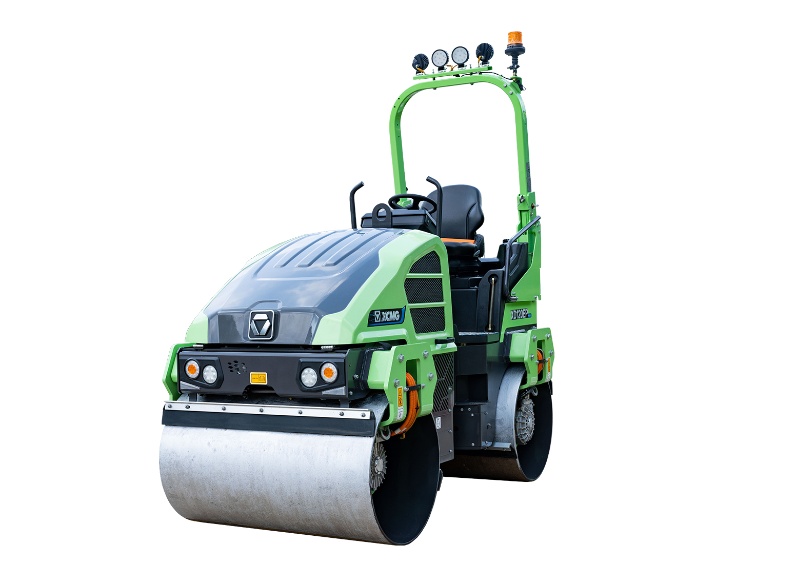

XD120EP electric vibratory roller employs a dual-motor drive and dual-motor vibration design. The machine's overall flexibility, minimal blind spots, high operating comfort, and low noise and zero emission characteristics make it an optimal choice for asphalt surface lamination in municipal maintenance and high-speed pipe maintenance applications.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating Weight | kg | 3000 |
| Static Linear Load | N/cm | 122/122 |
| Vibration Frequency | Hz | 42/45/50 |
| Amplitude | mm | 0.42 |
| Centrifugal Force | kN | 37 |
| Vibratory Drum Diameter × Width | mm | 720×1200 |
| Travel Speed | km/h | 0-10 |
| Theoretical Gradeability | % | 30 |
| Ground Clearance | mm | 275 |
| Steering Angle | ° | 32 |
| Power Battery | kWh | 31.4 |
| Voltage | V | 128 |
