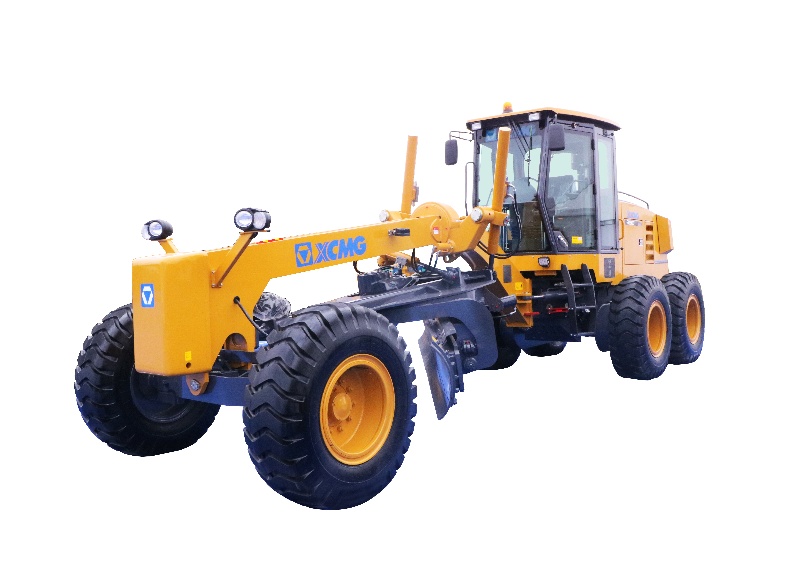

GR2403
GR2403 grader is mainly used for large-area ground leveling, trenching, slope scraping, bulldozing, ripping, snow removal and other works on the high-ways, airports, farmlands etc., and it can also be used under heavy-duty conditions. With the advantages of compact structure, high reliability, comfortable operation and convenient maintenance, the whole machine becomes a necessary construction machine for urban and rural road construction,water conservancy construction and farmland improvement.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine model | – | QSB6.7 |
| Rated power/speed | kW/rpm | 178/2000 |
| Machine dimension | mm | 8970 x 2625 x 3420(standard) |
| Machine weight | kg | 17000 (standard) |
| Drive speed, forward | km/h | 5、8、11、19、23、38 |
| Drive speed, reverse | km/h | 5、11、23 |
| Traction force f=0.75 | kN | ≥87 |
| Maximum gradeability | % | ≥25 |
| Minimum turning radius | m | 7.3 |
| Blade Length x Height | mm | 3965 x 610 |
| Emission | – | EU Stage Ⅲ |

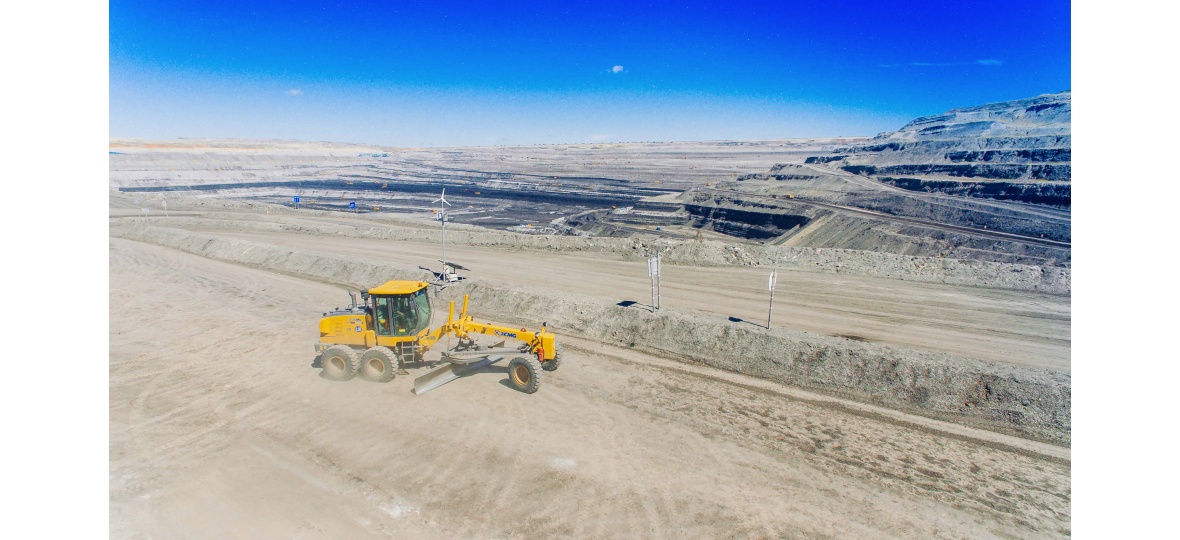

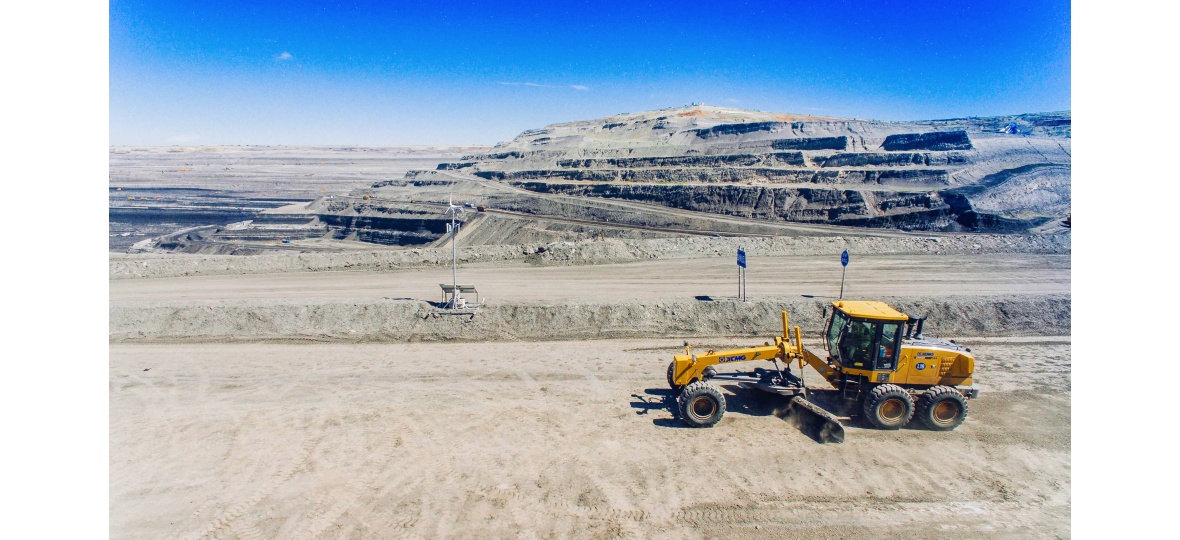

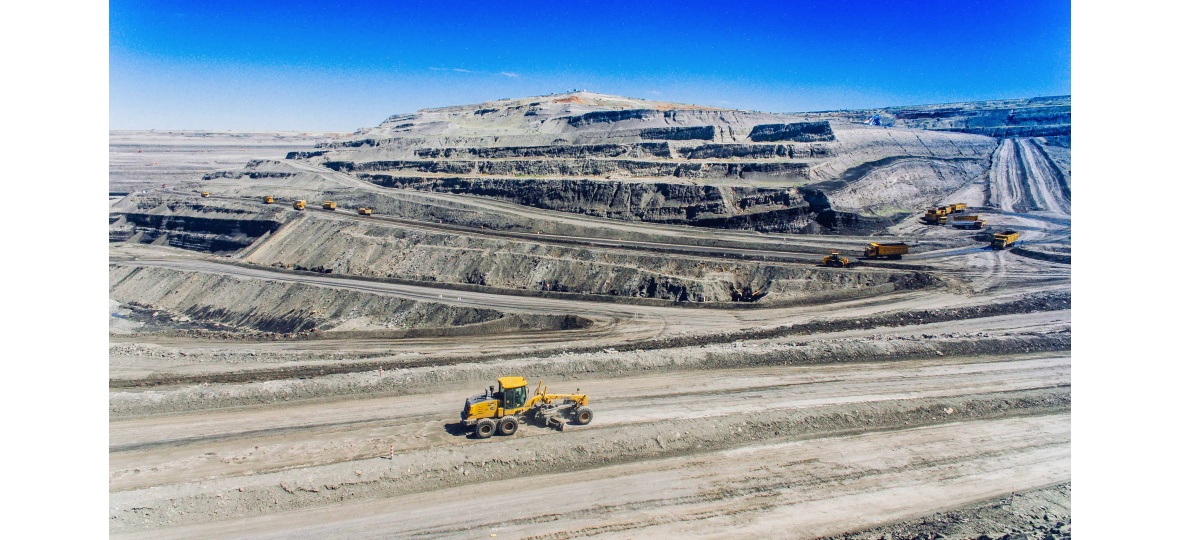

Gallery
