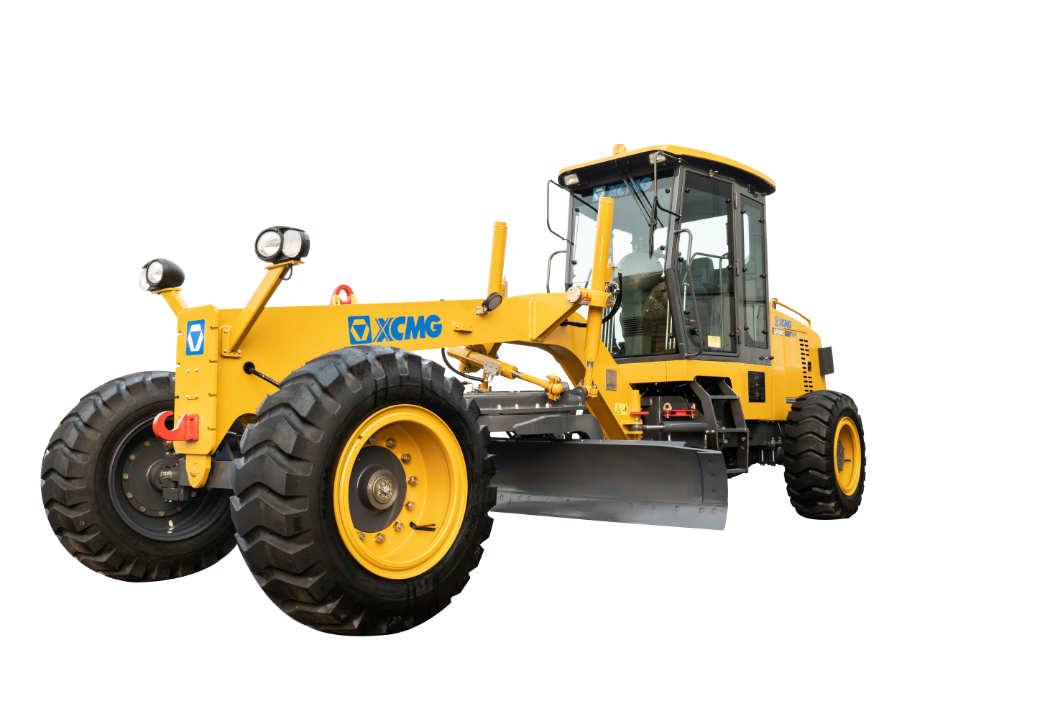

GR1003
The GR1003 motor grader is mainly used forground leveling, ditching,slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is thenecessary construction machinery for urban and rural road construction and water conservancy construction, farmland improvement and so on.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine model | – | WP4.1 |
| Rated power/speed | kW/rpm | 74/2200 |
| Machine dimension | mm | 7230×2375×3150(standard) |
| Machine weight | kg | 7500(standard) |
| Drive speed, forward | km/h | 5、8、11、17、24、38 |
| Drive speed, reverse | km/h | 5、11、24 |
| Traction force f=0.75 | kN | ≥39 |
| Maximum gradeability | % | ≥25 |
| Minimum turning radius | m | 6 |
| Blade Length x Height | mm | 3048×450 |
| Emission | – | EU Stage Ⅲ |
Gallery
