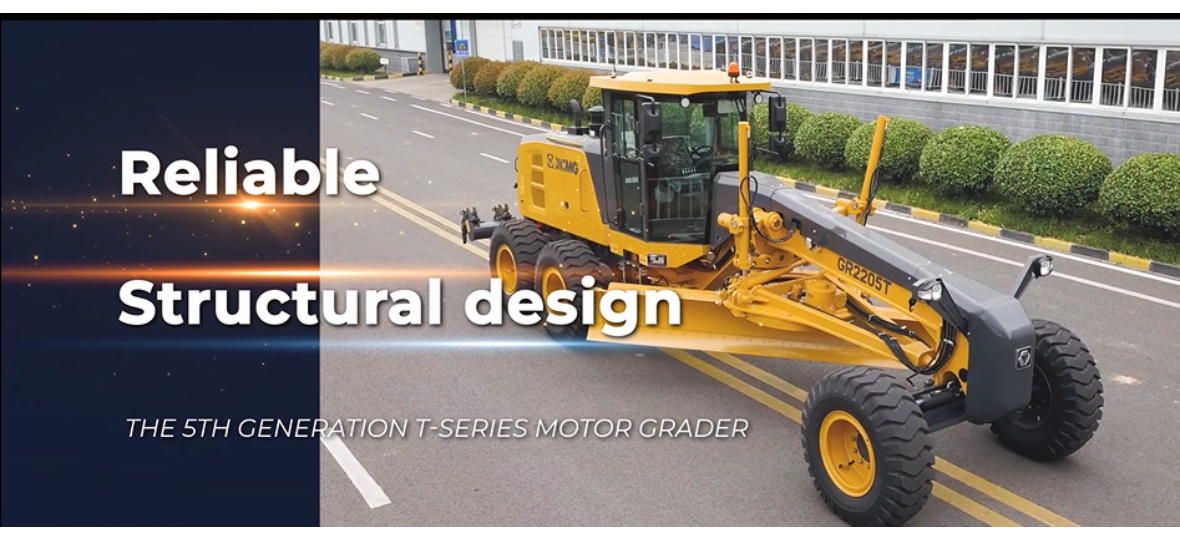

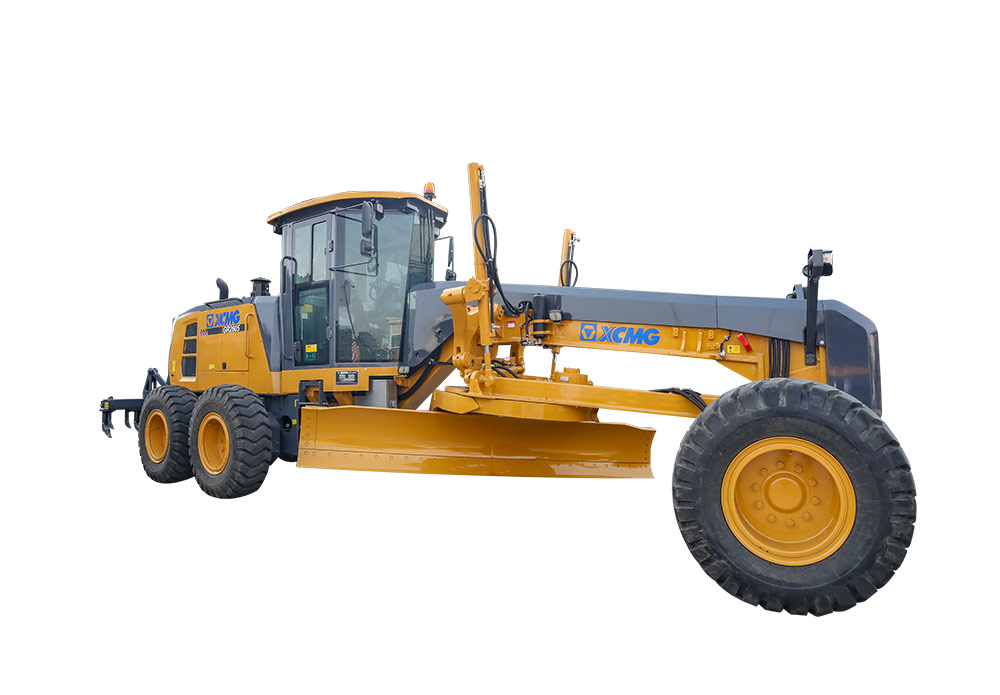

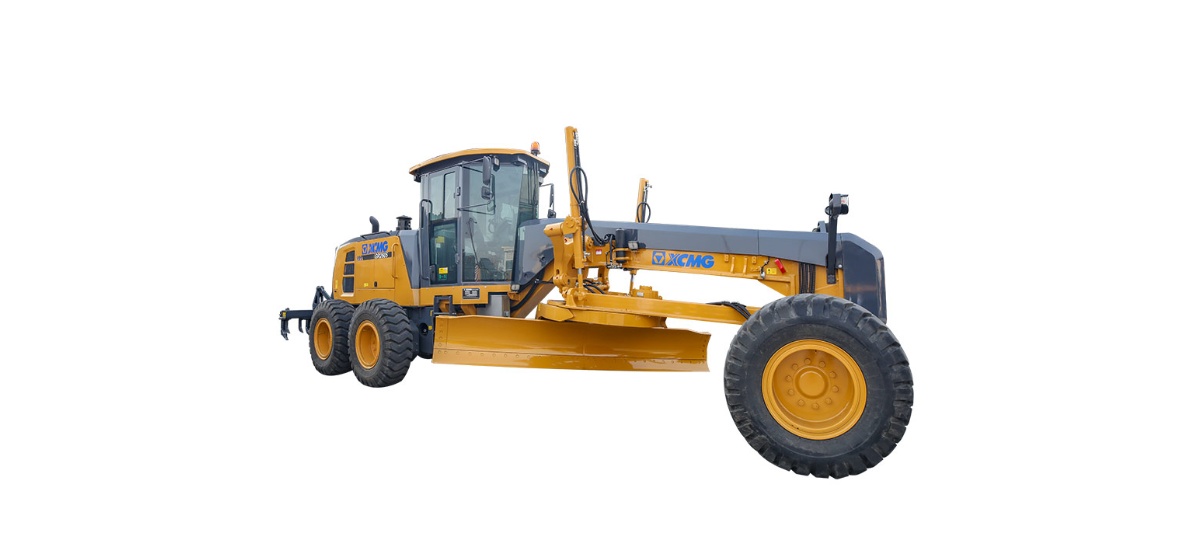

GR2605T Pro
As major machine for shaping and leveling operation in earthwork engineering, motor grader is widely used for large ground (such as road and airport) and leveling operation of stable layer. With the constant expansion of its functions and development of its high-efficiency over the years, motor grader is applied to bulldozing and spreading of open-pit and roadbed mixture as well trimming of original landform. Besides, it can be applied to snow removing in cold region. Featuring 260HP power, strong strength of machine components and sufficient driving force, GR2605T Pro is a heavy-duty motor grader research and developed especially for high-load working condition.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine model | – | QSL8.9 |
| Rated power/speed | kW/rpm | 194/2200 |
| Machine dimension | mm | 9448×2625×3500 |
| Machine weight | kg | 19000 |
| Drive speed, forward | km/h | 5、9、14、22、34、48 |
| Drive speed, reverse | km/h | 6、15、35 |
| Traction force f=0.75 | kN | ≥99 |
| Maximum gradeability | % | ≥25 |
| Minimum turning radius | m | 7.8 |
| Blade Length x Height | mm | 3660×610 |
| Emission | – | EU Stage Ⅲ |
