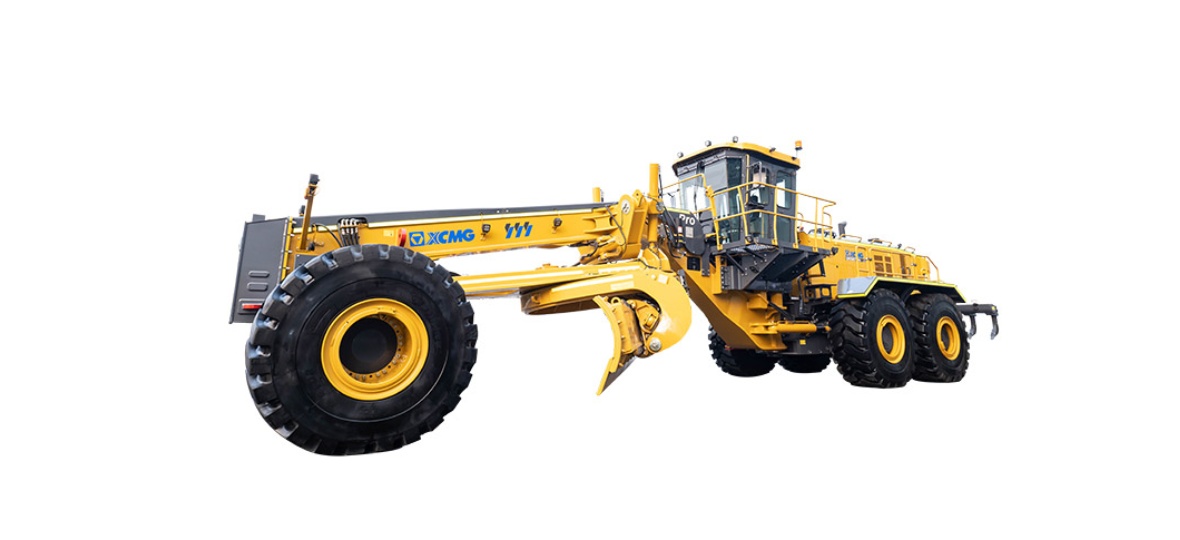

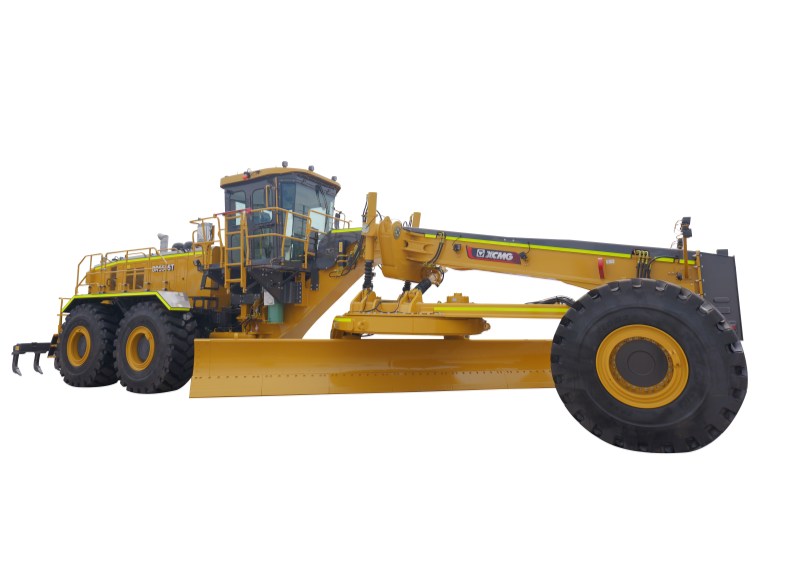

GR5505T Pro
Motor grader is one of the key earthmoving machinery used for finishing and leveling of ground surface and stable layer at highways, airports andother massive jobsites. In recent years,with its constantly expanded application and enhanced productivity, motor grader has been favored also inbulldozing and laydown of roadbed mixture in the open pit mines, as much in reconditioning of original landforms, etc.With robust structural partsand sufficient horse power, GR5505T, Proheavy-duty motor grader is specifically designed for large open pit mines.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine model | – | 2806D-E18TA |
| Rated power/speed | kW/rpm | 447/2100 |
| Machine dimension | mm | 16430x4560x4810 |
| Machine weight | kg | 74000 |
| Drive speed, forward | km/h | 4.6、5.9、8.7、11.7、17.7、25.1、32.2、42.7 |
| Drive speed, reverse | km/h | 4.5、8.7、17.2、32.6 |
| Traction force f=0.75 | kN | ≥390 |
| Maximum gradeability | % | ≥30 |
| Minimum turning radius | m | 12.5 |
| Blade Length x Height | mm | 7300×1025 |
| Emission | – | EU Stage Ⅲ |
Gallery
