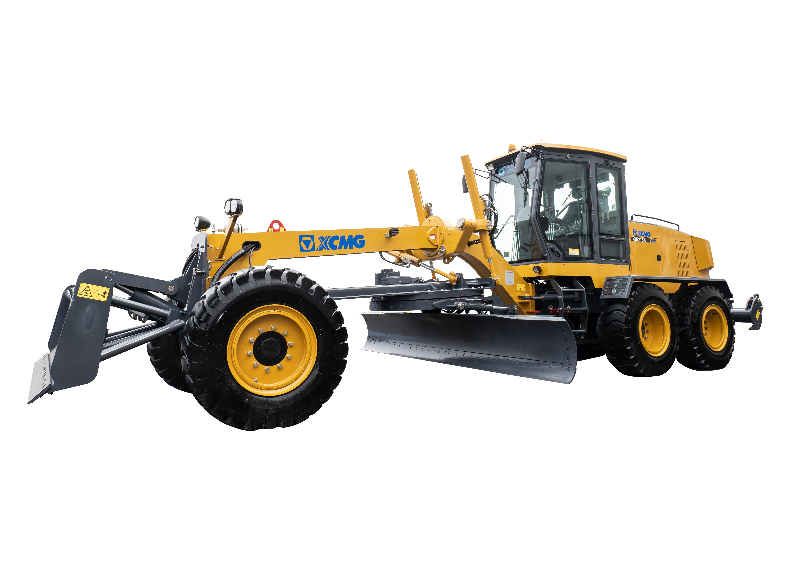

GR215A
GR215A motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as high-way, airports, farmlands etc., also can be used inheavy duty and mining areas. The machine features compact structure and high reliability, is the indispensable construction machinery for national defense projects, urban and rural roads and other building construction and water conservancy construction, farmland improvement, etc.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine model | – | 6CTA8.3-C215 |
| Rated power/speed | kW/rpm | 160/2200 |
| Machine dimension | mm | 9180 x 2625 x 3420 |
| Machine weight | kg | 16100 |
| Drive speed, forward | km/h | 5、8、11、19、23、38k |
| Drive speed, reverse | km/h | 5、11、23 |
| Traction force f=0.75 | kN | ≥118 |
| Maximum gradeability | % | ≥30 |
| Minimum turning radius | m | 7.3 |
| Blade Length x Height | mm | 4270 x 610 |
| Emission | – | EU Stage Ⅱ |
Gallery
