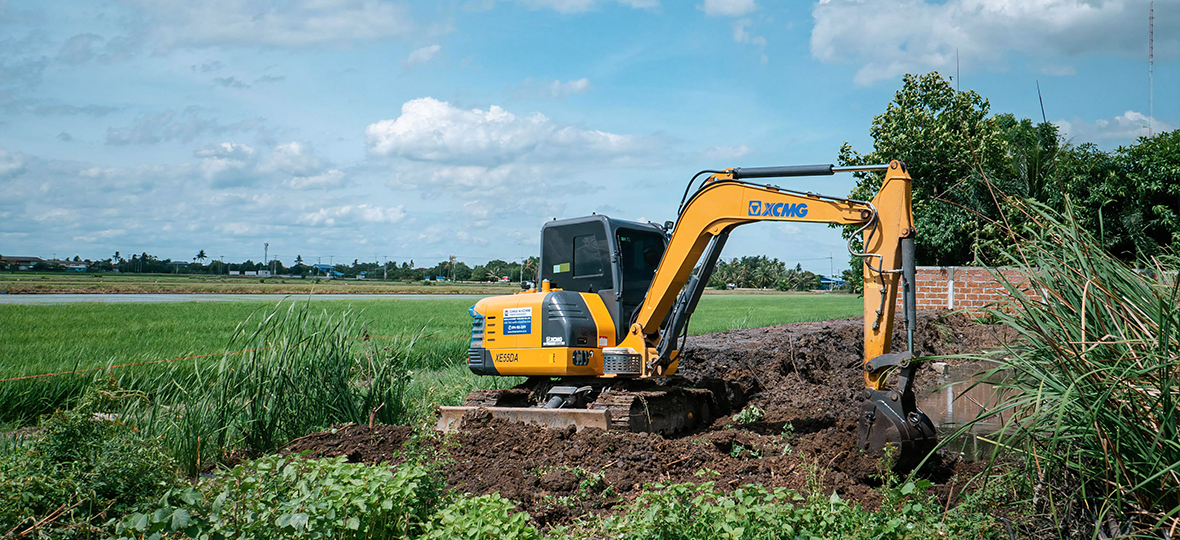

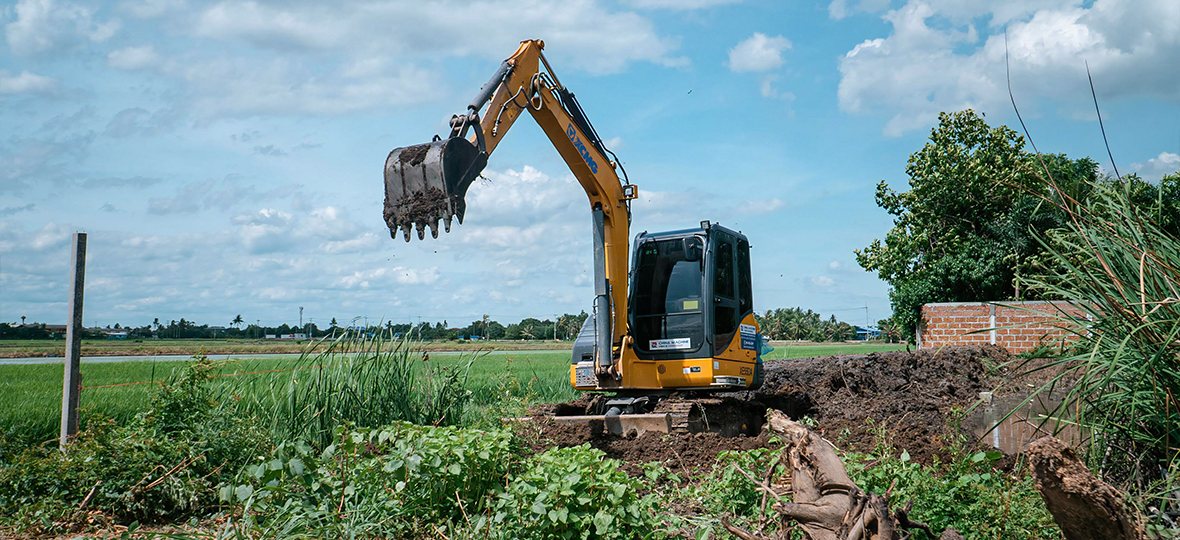

XE55DA
Optimization of the power matching between the main pump and the engine achieves a reduction of more than 7% in the comprehensive fuel consumption for excavation operations. The new load hydraulic sensitive system is equipped with "eight-ton" large-diameter main valves, with a 33.3% increase in diameter, further reducing pressure loss and optimizing the handling of composite movements. Optimized and upgraded slewing torque, increased torque by 20%. The width of chassis is increased by 60mm, which strengthens and enlarges the chassis, and the solid chassis makes the excavation more stable and the operation easier.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | Kg | 5750 |
| Rated power | kW/rpm | 35 |
| Engine model | – | Kubota V2607 |
| Bucket capacity | m³ | 0.21 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 171.5/ 1100-1500 |
| Displacement | L | 2.615 |
| Travel speed | km/h | 4.2/2.4 |
| Swing speed | r/min | 10 |
| Bucket digging force | kN | 48.3 |
| Arm digging force | kN | 32.5 |
