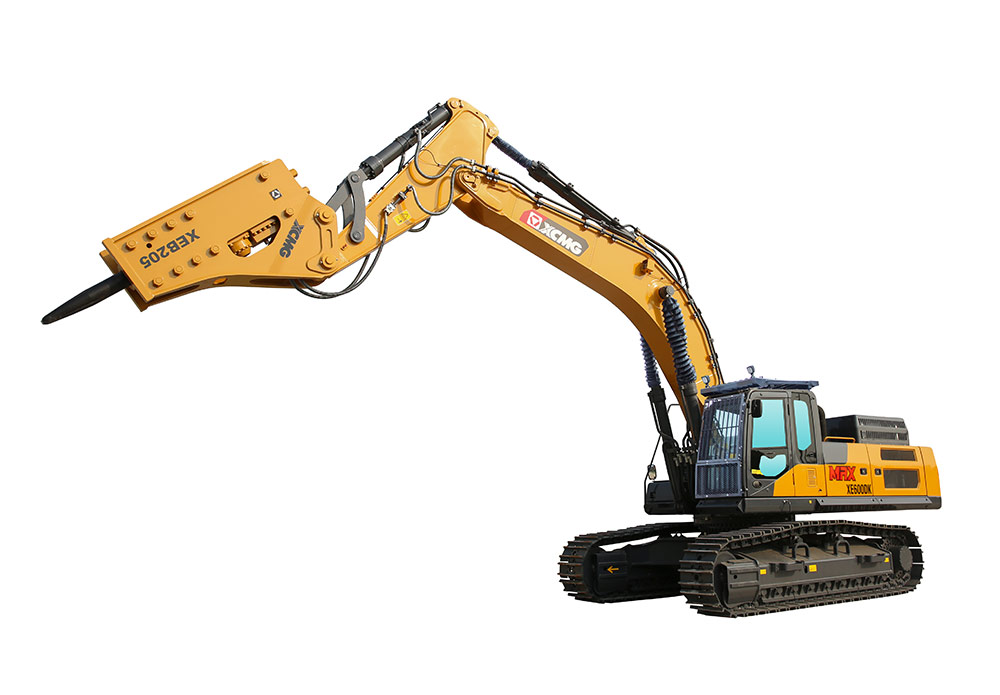

XE600DK
XCMG-customized Commins engine, with the largest power in the industry, XE600DK is characterized by low-speed and high-torque, good starting performance, excellent load-bearing performance, and high reliability. 240 cc large-displacement main pump, with the largest displacement of the same tonnage machine, provides larger flow output, higher speed, and higher breaking operation efficiency. A large radiator with high temperature resistance helps improve the heat-sinking capability by 16%. The reinforced design is used for the working device, so the service life becomes longer. Additionally, standard configurations of the one-click starting switch and 8-inch touch screen make the operator comfort to be better.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | Kg | 64500 |
| Rated power | kW/rpm | 277 |
| Engine model | – | Cummins QSX12 |
| Bucket capacity | m³ | 3.6 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 1898/(1200-1600) |
| Displacement | L | 11.8 |
| Travel speed | km/h | 5.4/3.2 |
| Swing speed | r/min | 7.9 |
| Bucket digging force | kN | 330 |
| Arm digging force | kN | 276 |
