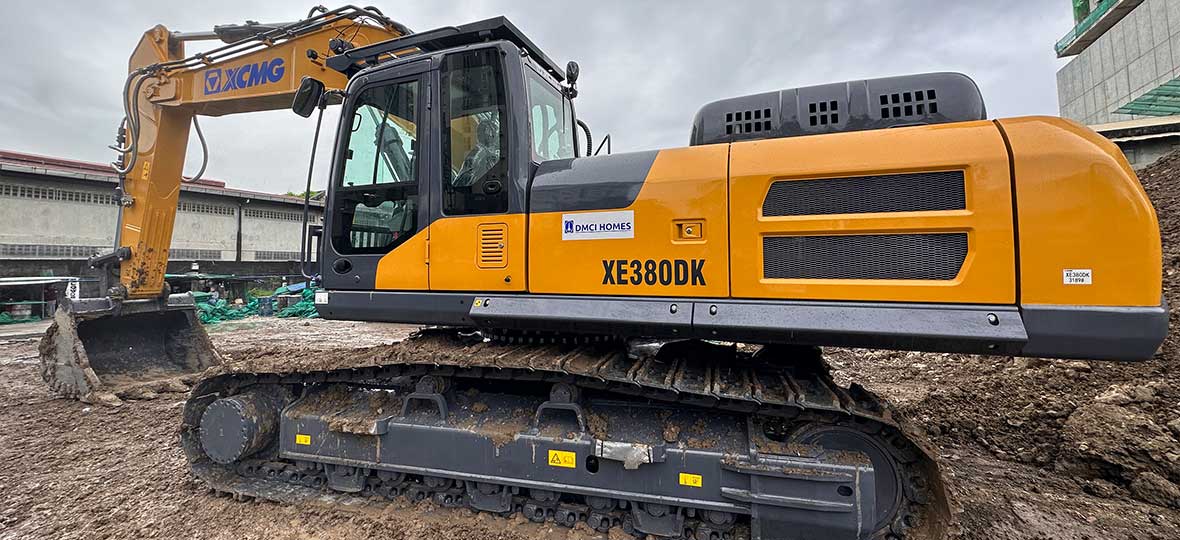

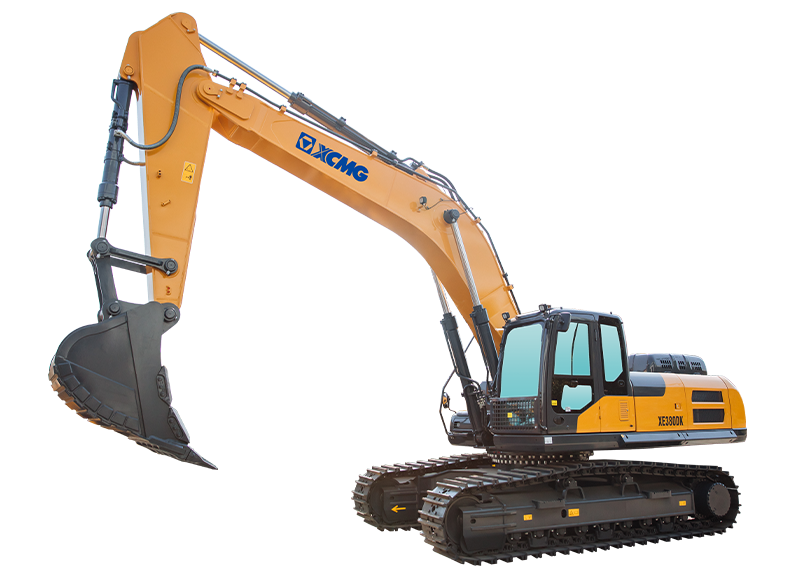

XE380DK
With Commins QSL9 engine and customized XCMG torque curve, XE380DK has low-speed and large-torque output and low fuel consumption under the heavy-load mode. With straight-flow air filter, it can meet requirements in medium- and heavy- gray conditions; with low intake resistance, it can reduce engine fuel consumption and prevent the engine from early grinding. The detachable pre-filtration function is integrated and the full-life filtration efficiency is over 99.99%. The large capacity rock bucket with the double circular-arc design structure reduces the resistance during excavation and makes it easier for material loading and unloading.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | Kg | 38200 |
| Rated power | kW/rpm | 214 |
| Engine model | – | Cummins QSL9 |
| Bucket capacity | m³ | 1.9 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 1344/1300 |
| Displacement | L | 8.9 |
| Travel speed | km/h | 5.6/3.3 |
| Swing speed | r/min | 9.6 |
| Bucket digging force | kN | 292 |
| Arm digging force | kN | 209 |
Gallery
