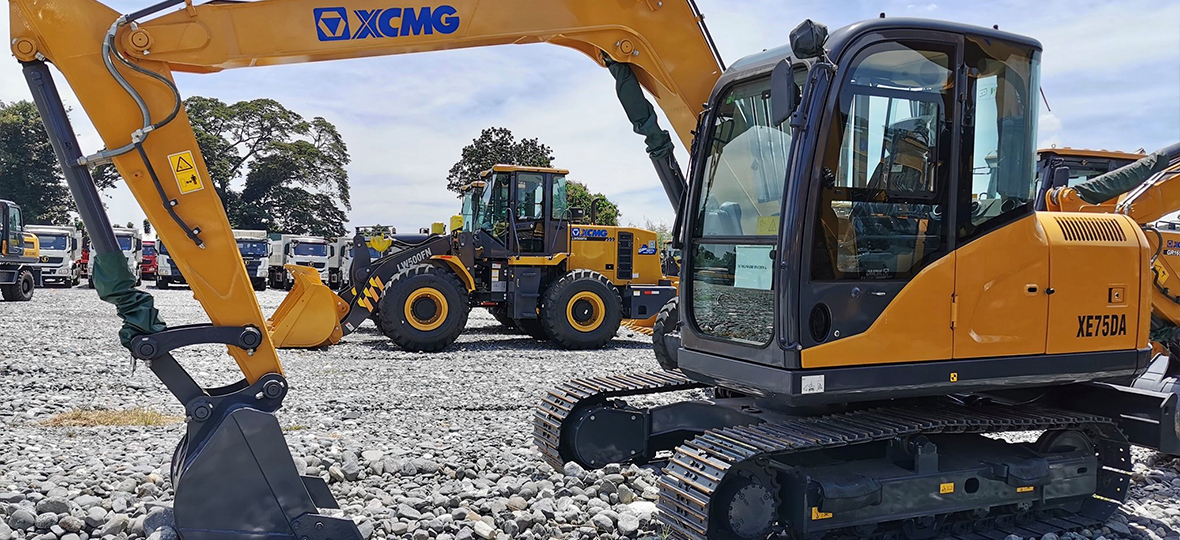

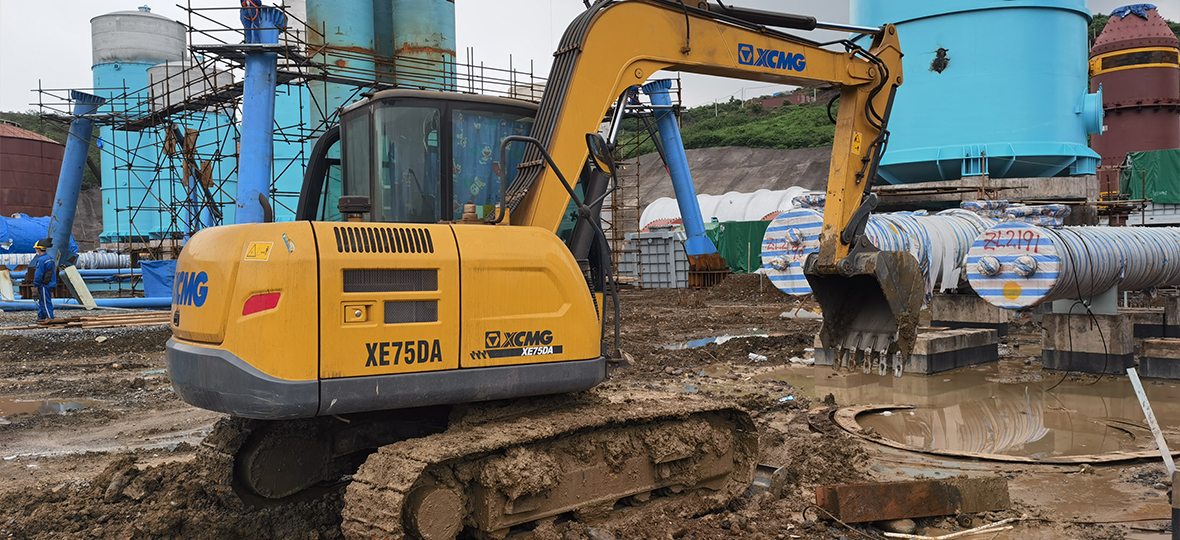

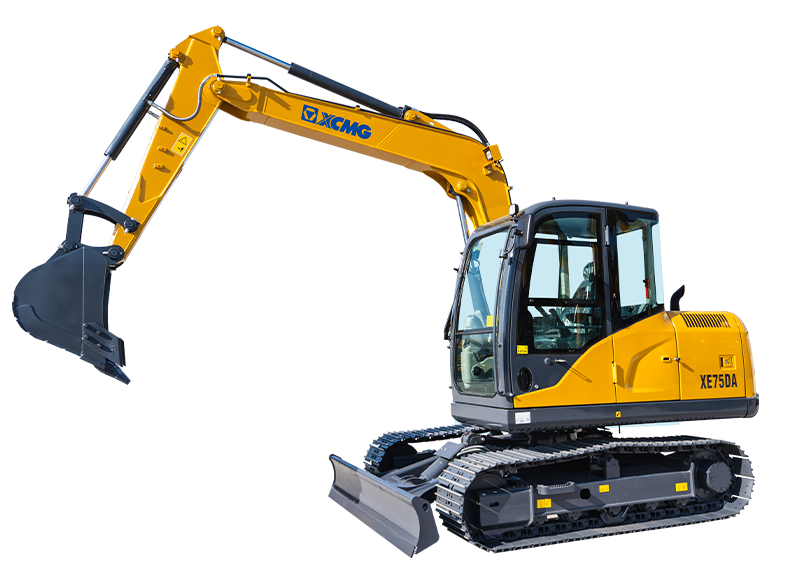

XE75DA
With Kubota turbocharged engine, XE75DA has sufficient low-speed torque reserve, strong power, good fuel economy, low noise and vibration. Newly optimised second-generation main valve further optimises the handling performance, with good handling of compound action, fast response speed, more precise control and more energy-saving system. Reinforced working device is easily capable of heavy-duty excavation, crushing and other harsh working conditions, and the working life is increased by more than 15%. Standard 0.33m³ bucket capacity, high digging operation efficiency, increase the material used for wear-resistant plate, bucket practical life enhancement of more than 10%. Additionally, it has comfortable operation cab and simple maintenance.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | Kg | 7680 |
| Rated power | kW/rpm | 42.4 |
| Engine model | – | Kubota V2607 |
| Bucket capacity | m³ | 0.33 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 225.8/1400-1800 |
| Displacement | L | 2.615 |
| Travel speed | km/h | 5.4/3.1 |
| Swing speed | r/min | 10 |
| Bucket digging force | kN | 57 |
| Arm digging force | kN | 38 |
