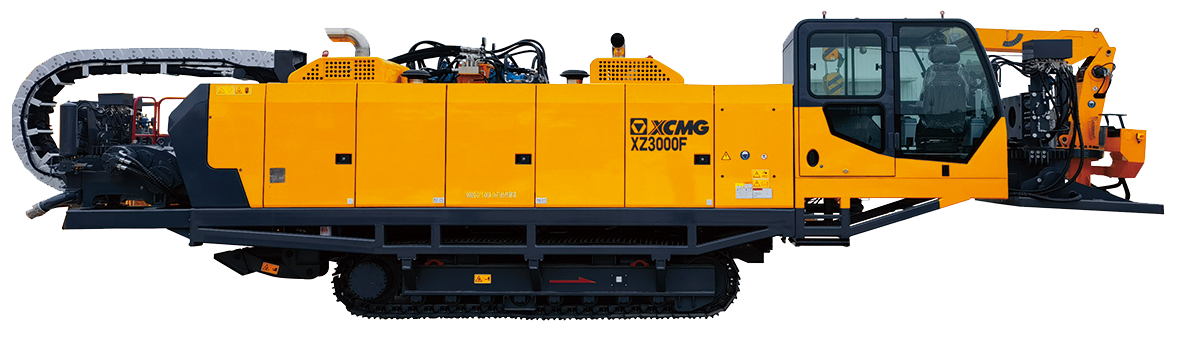

XZ3000F
Large-tonnage drilling rig is mainly used for large-diameter and long-distance pipeline construction.The comprehensive digital display and adjustment of the working parameters of the equipment and the multi-directional automation and intelligent design can provide reliable guarantee for the construction safety. A single engine can be used for construction to save fuel and reduce operating costs.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | / | Cummins |
| Rated power | kW | 2×264 |
| Power head Max. thrust-pull force | kN | 3000 |
| Power head Max. thrust-pull speed | m/min | 42 |
| Power head Torque | N·m | 92 |
| Power head Max. rotation speed | r/min | 95 |
| Mud pump Max. flow | L/min | Additional |
| Mud pump Max. pressure | MPa | ’10/20 |
| Crane Lifting weight | t | 3.2 |
| Crane Lifting moment | t•m | 6.4 |
| Recommended drill pipe | mm×m | φ127/φ140×6 |
| Max. entry angle | ° | 16 |
| Max. back reaming diamete | mm | Φ1500 |
| Weight | t | 35 |
| Outline dimensions | mm | 13700×3230×3450 |
