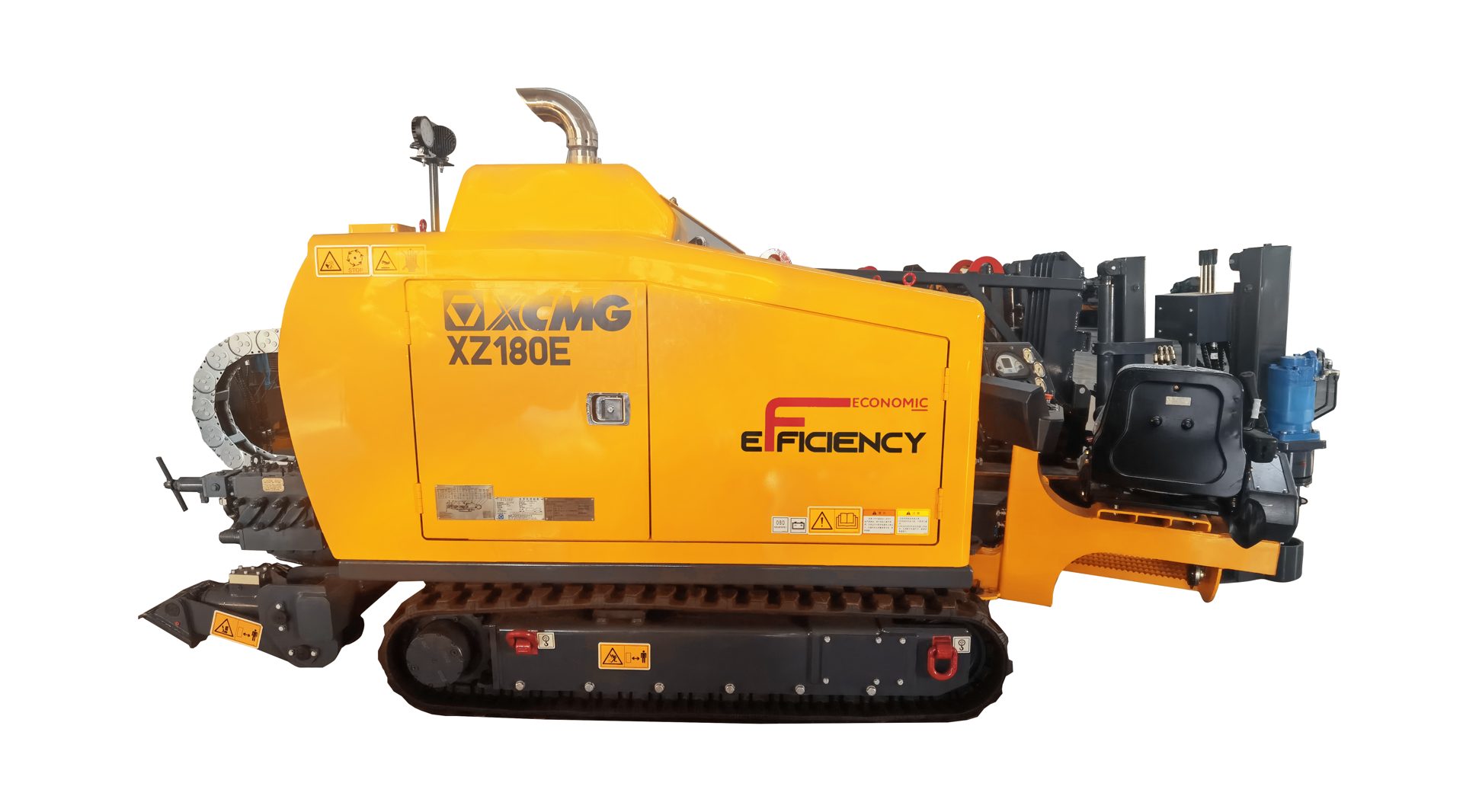

XZ180E
The small tonnage drilling rig is mainly used in the field of municipal pipe network construction. The equipment adopts integrated design, has small size, and is flexible in construction and convenient for transportation. The drilling rig can be equipped with a variety of functional components to meet diverse needs.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | / | Cummins |
| Rated power | kW | 96 |
| Power head Max. thrust-pull force | kN | 180 |
| Power head Max. thrust-pull speed | m/min | 45 |
| Power head Torque | N·m | 4600 |
| Power head Max. rotation speed | r/min | 200 |
| Mud pump Max. flow | L/min | 180 |
| Mud pump Max. pressure | MPa | 8 |
| Crane Lifting weight | t | / |
| Crane Lifting moment | t•m | / |
| Recommended drill pipe | mm×m | φ60×2 |
| Max. entry angle | ° | 18 |
| Max. back reaming diamete | mm | φ500 |
| Weight | t | 5.5 |
| Outline dimensions | mm | 4500×1800×2170 |
