RP803

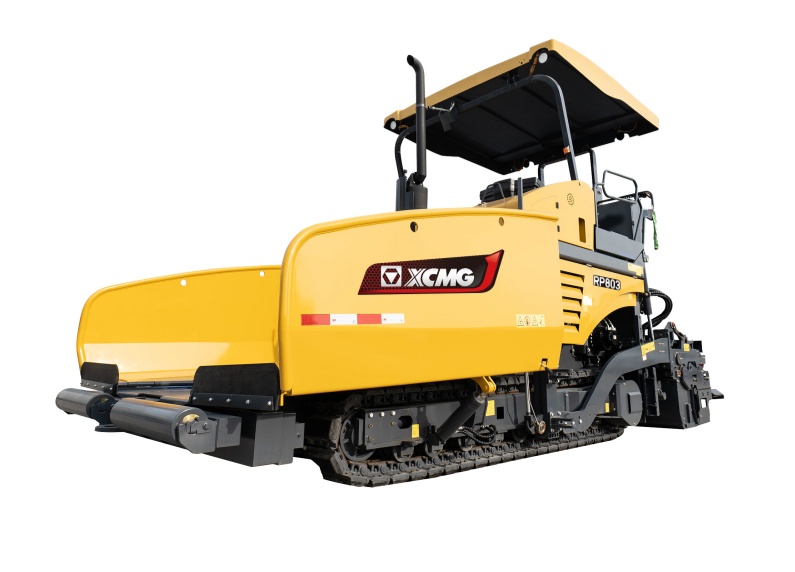

RP803 paver is a versatile medium-sized paving con- struction equipment. The machine is powered by Cum- mins engine with 142kW rated power; reinforced hydrau- lic extending screed provides stable work quality and high evenness. This machine applies the cutting-edge technologies, such as the new microcomputer control, ultrasonic material level sensing, electronic automatic leveling and fault self-diagnosis, to ensure the reliable and stable operation. The equipment is suitable for paving asphalt, cement stabilized soil and other materi- als, meeting the requirements of urban road mainte- nance, high-grade highway base and surface paving and other working conditions.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Basic paving width | m | 2.5～5.0 |
| Max. paving width | m | 8 |
| Max. paving thickness | mm | 400 |
| Working speed | m/min | 20 |
| Travel speed | km/h | 3 |
| Theoretical productivity | t/h | 800 |
| Hopper capacity | t | 14 |
| Diesel engine power | kW | 142 |
| Transportation dimensions | mm | 6740x2630x4000 |
| Total weight | t | 20.5～22.8 |
| Engine Manufacturer | – | Cummins |
| Engine Model | – | QSB6.7 |
| Emission | – | EU Stage Ⅲ |
