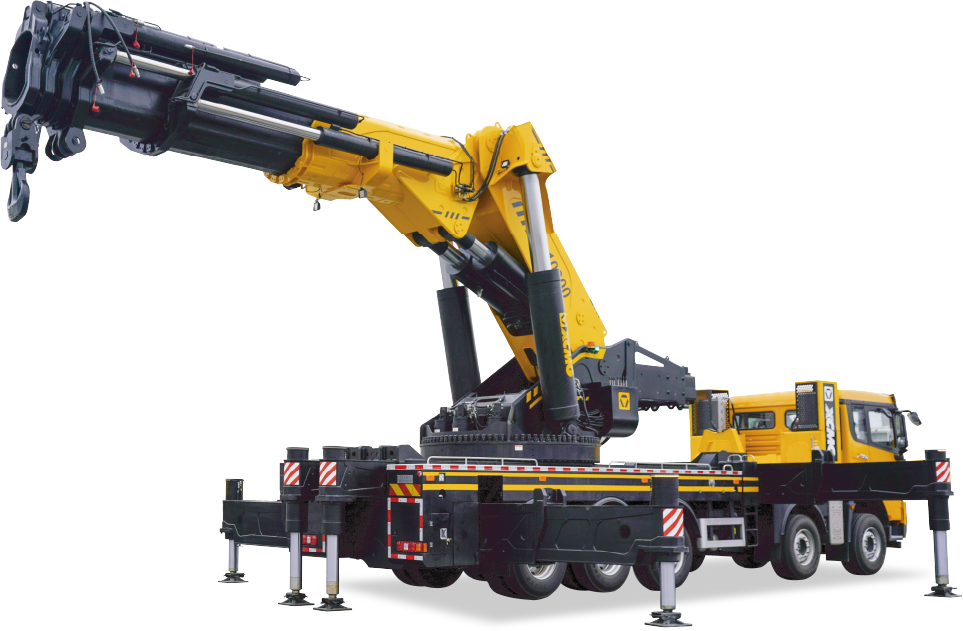

SQZ10000
This machine has five telescopic arms, four double push, with stronger lifting capacity and load expansion capacity, buffer sequence extension of the cylinder, sequence extension is more reliable, more stable and smooth expansion, convenient and accurate operation; Quick disassembly type counterweight mechanism, the removal can reduce the turning space, the addition can improve the stability of the vehicle, improve the lifting performance; Maximum 45t balance weight with the rotary table, self-loading and self-unloading, simple and fast; Three large torque reducer, strong rotation power, good braking effect, to ensure more stable rotation, safer operation; Vehicle lightweight design, light weight, not over limit, in full compliance with regulatory requirements; Short body, small turning radius, is conducive to small space movement; Low height, free access to all kinds of workshops.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Drive Type | – | – |
| Kerb Mass | kg | – |
| GVW | kg | – |
| Max. Speed | km/h | – |
| Min. Turning Diameter | m | – |
| Grade Ability | – | – |
| Fuel Tank | L | – |
| Dimension | mm | 13744*4000（L*H） |
| Wheelbase | mm | – |
| Min. Clearance | mm | – |
| Approach Angle | – | – |
| Departure Angle | – | – |
| Cabin Model | – | – |
| Left/Right Driving | – | – |
| AC | – | – |
| Person Allowed in | – | – |
| Engine Model | – | WP12.460E62 |
| Emission Standard | – | National Ⅵ |
| Displacement | L | – |
| Output Power | KW | – |
| Max Torque Speed | N·m | – |
| Transmission Model | – | – |
| PTO | – | 12jsdx220TA-B/QHG70 |
| Front Axle Model | – | – |
| Rear Axle Model | – | – |
| Main Reducer Ratio | – | – |
| Rim | – | – |
| Tire | – | – |
