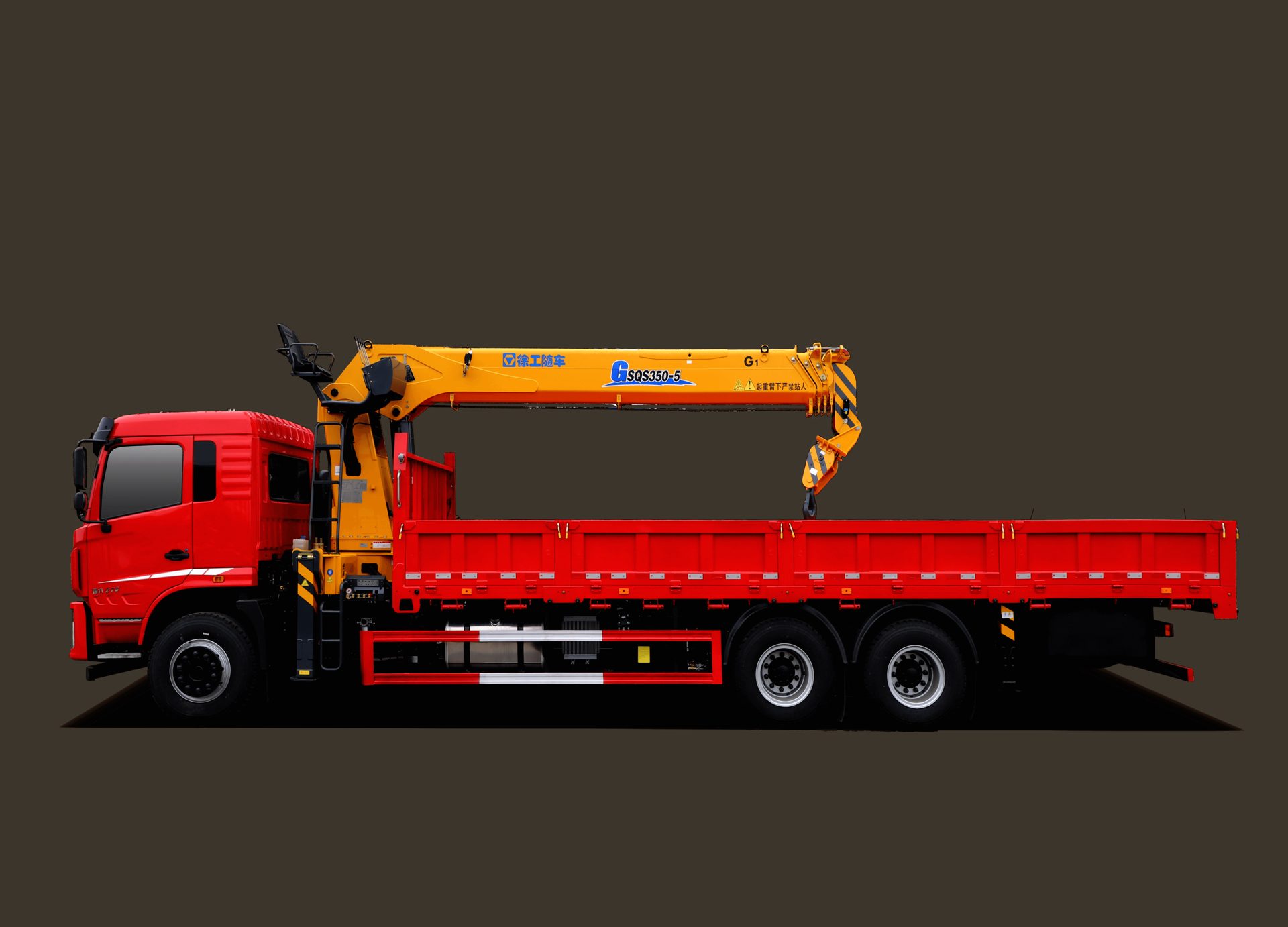

GSQS350-5
1.The new octagonal arm section has greater lifting capacity and strong bending and tor- sional resistance under the same amplitude. 2.Rotary table high seat control, with better working view, remote control can be optional. 3.Using manual rotation and automatic turning of double-stage double-cylinder leg, improve the adaptability of the site on the basis of a larger span, improve the stability of the ma- chine. 4.Onboard hydraulic proportional valve, good micro-motion performance, and can carry out compound action, high operating comfort. 5.The standard high-power radiator ensures that the oil temperature of the crane is not high for a long time. 6.Standard hydraulic control torque limit valve, to ensure that customers use the crane more at ease. 7.Standard L-HM(CY) XCMG wide temperature hydraulic oil, can be used in winter and summer.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Drive Type | – | 6X4/3 |
| Kerb Mass | kg | – |
| GVW | kg | 18500 |
| Max. Speed | km/h | 90 |
| Min. Turning Diameter | m | – |
| Grade Ability | – | – |
| Fuel Tank | L | – |
| Dimension | mm | 10940*2530*3850 |
| Wheelbase | mm | 5225+1350 |
| Min. Clearance | mm | – |
| Approach Angle | – | 16 |
| Departure Angle | – | 14 |
| Cabin Model | – | – |
| Left/Right Driving | – | – |
| AC | – | – |
| Person Allowed in | – | 2 |
| Engine Model | – | MC11.40-50 |
| Emission Standard | – | Euro V |
| Displacement | L | 9.726 |
| Output Power | KW | 294 |
| Max Torque Speed | N·m | – |
| Transmission Model | – | – |
| PTO | – | HW19709XST |
| Front Axle Model | – | – |
| Rear Axle Model | – | – |
| Main Reducer Ratio | – | – |
| Rim | – | – |
| Tire | – | 315/80R22.5 |
