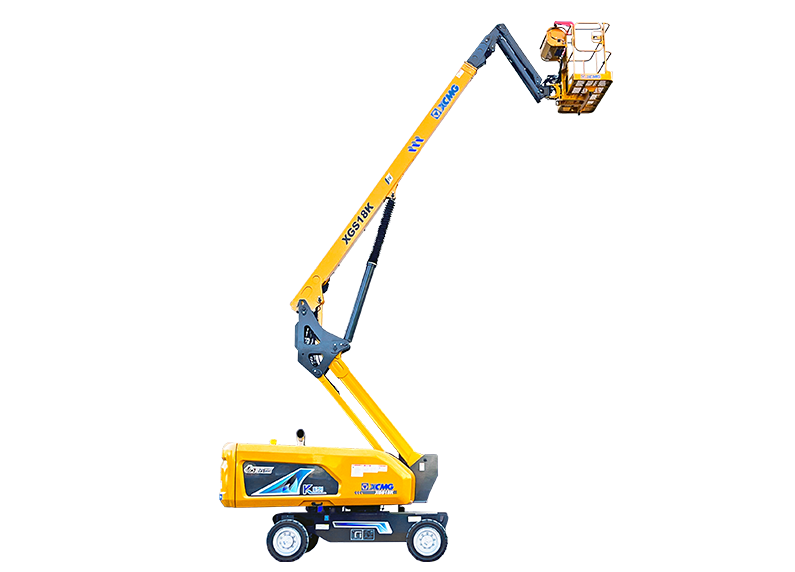

XGS18K
XGS18K mobile elevating platform is a kind of straight-arm mobile elevating platform with compact layout, precise design, powerful drive and easy operation. It is easy to operate, safe, reliable, accurate and efficient, and can widely meet the needs of users in various industries such as building construction, steel structure, petrochemical, venues and rental.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Working Height | mm | 18280 |
| Lift capacity | kg | 300kg(unlimited) |
| Weight | kg | 8000 |
| Overall dimension-Stowed | mm | 9000x2320x2520 |
| Overall dimension-Transportation | mm | 7400x2320x2600 |
| Dimension of working platform | mm | 1830x760x1150 |
| Wheelbase | mm | 2360 |
| Fly jib length | mm | 1420 |
| Ground clearance | mm | 240 |
| Max.Platform height | m | 16.28 |
| Max.Working range | m | 12.05 |
| Max.Occupants | – | 2 |
| Max.Working slope | – | X-5°/Y-5° |
| Telescopic boom luffing range | – | -8°～+73.5° |
| Flying jib luffing range | – | -60°~70° |
| Turntable rotation | – | 360° |
| Platform rotation | – | 160° |
| Drive speed | stowed | 5.5km/h |
| Drive speed | Up or extended | 0.6km/h |
| Min.Turning radius | inside/outside | 3200mm/4700mm |
| Turntable tailswing | stowed | 1400mm |
| Max.Gradeability | – | 45%(24°) |
