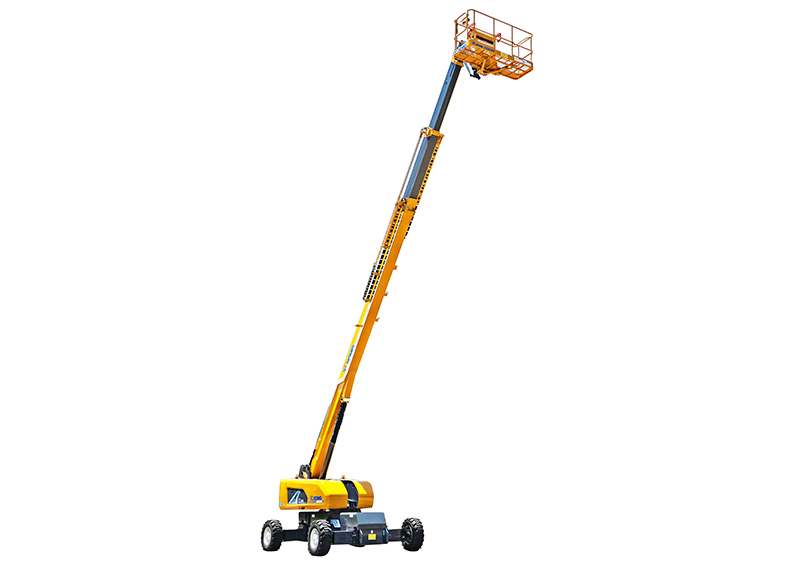

| Item |
Unit |
Parameter |
| Working Height |
mm |
34300 |
| Lift capacity |
kg |
300kg (unlimited)/460kg(limited) |
| Weight |
kg |
19300 |
| Overall dimension-Stowed |
mm |
14400x2490x3000 |
| Overall dimension-Transportation |
mm |
12800x2490x3000 |
| Dimension of working platform |
mm |
2400x900x1150 |
| Wheelbase |
mm |
3800 |
| Overall Width |
Axle retracted/Axle extended |
2490mm/3800mm |
| Fly jib length |
mm |
1420 |
| Ground clearance |
mm |
300 |
| Max.Platform height |
m |
32.3 |
| Max.Working range |
m |
34.7 |
| Max.Occupants |
– |
3 |
| Max.Working slope |
– |
X-3°/ Y-3° |
| Telescopic boom luffing range |
– |
-6～+75° |
| Flying jib luffing range |
– |
-60°~+70° |
| Turntable rotation |
– |
360° |
| Platform rotation |
– |
160° |
| Drive speed |
stowed |
5.0 km/h |
| Drive speed |
Up or extended |
0.5 km/h |
| Min.Turning radius-Axle retracted |
inside/outside |
7700mm/10800mm(2-wheel) 4400mm/6800mm(4-wheel) |
| Min.Turning radius-Axle extended |
inside/outside |
5000mm/8000mm(2-wheel) 2400mm/5800mm(4-wheel) |
| Turntable tailswing |
Axle retracted/Axle extended |
2085/1430mm |
| Max.Gradeability |
– |
45% (24°) |
