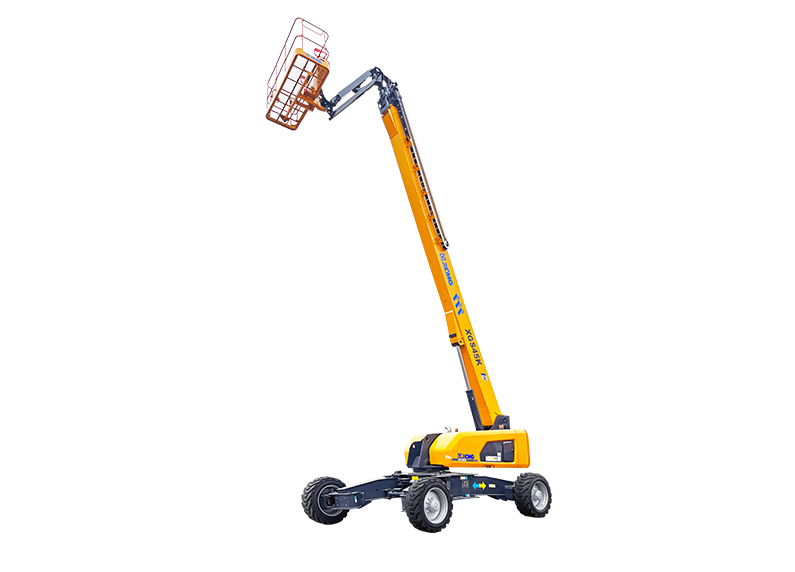

| Item |
Unit |
Parameter |
| Working Height |
mm |
45100 |
| Lift capacity |
kg |
300kg (unlimited)/460kg(limited) |
| Weight |
kg |
22200 |
| Overall dimension-Stowed |
mm |
15420x2490x2940 |
| Overall dimension-Transportation |
mm |
12530x2490x3940 |
| Dimension of working platform |
mm |
2400x900x1150 |
| Wheelbase |
mm |
4630（Axle retracted）/4243（Axle extended） |
| Overall Width |
Axle retracted/Axle extended |
2490mm/4400mm |
| Fly jib length |
mm |
2440 |
| Ground clearance |
mm |
400 |
| Max.Platform height |
m |
43.1 |
| Max.Working range |
m |
25.2 |
| Max.Occupants |
– |
3 |
| Max.Working slope |
– |
X-3°/ Y-3° |
| Telescopic boom luffing range |
– |
-1～+75° |
| Flying jib luffing range |
– |
-60°~+70° |
| Turntable rotation |
– |
360° |
| Platform rotation |
– |
160° |
| Drive speed |
stowed |
5.0 km/h |
| Drive speed |
Up or extended |
0.5 km/h |
| Min.Turning radius-Axle retracted |
inside/outside |
14800mm/17200mm(2-wheel) 7100mm/9600mm(4-wheel) |
| Min.Turning radius-Axle extended |
inside/outside |
5500mm/8700mm(2-wheel) 2400mm/6300mm(4-wheel) |
| Turntable tailswing |
Axle retracted/Axle extended |
2649mm/1694mm |
| Max.Gradeability |
– |
40% (21°) |
