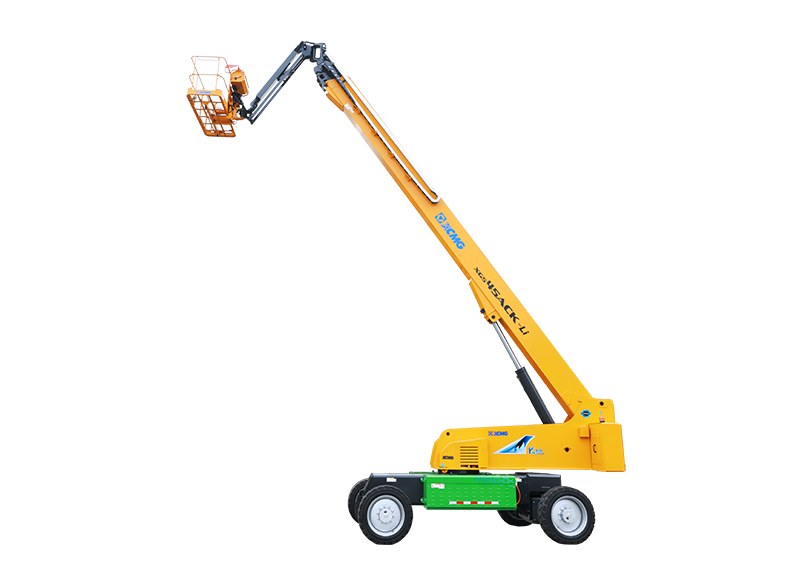

XGS45ACK-Li
XGS45ACK-Li mobile elevating work platform is an innovative electric straight-arm self-propelled mobile elevating work platform with excellent performance, outstanding efficiency, powerful drive and easy operation. It has industry-leading load capacity and large working surface construction, with the leading working height and amplitude in the same meter class.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Working Height | mm | 45100 |
| Lift capacity | kg | 230(unlimited)/300(limited)/460(limited) |
| Weight | kg | 20500 |
| Overall dimension-Stowed | mm | 15500×2490/3800×3050 |
| Overall dimension-Transportation | mm | 12600×2490/3800×3050 |
| Dimension of working platform | mm | 2400x900x1150 |
| Wheelbase | mm | 3800 |
| Fly jib length | mm | 2440 |
| Ground clearance | mm | 300 |
| Max.Platform height | m | 43.1 |
| Max.Working range | m | 22.1 |
| Max.Occupants | – | 2~3 |
| Max.Working slope | – | X-3°/ Y-3° |
| Telescopic boom luffing range | – | -1°~ +75° |
| Flying jib luffing range | – | -60°~+70° |
| Turntable rotation | – | 360° |
| Platform rotation | – | 160° |
| Drive speed | stowed | 20500kg |
| Drive speed | Up or extended | 5km/h |
| Min.Turning radius | inside/outside | 0.5 km/h |
| Turntable tailswing | stowed | 7700mm/10800mm(2-wheel) 4400mm/6800mm(4-wheel) |
| Max.Gradeability | – | 5000mm/8000mm(2-wheel) 2400mm/5800mm(4-wheel) |
