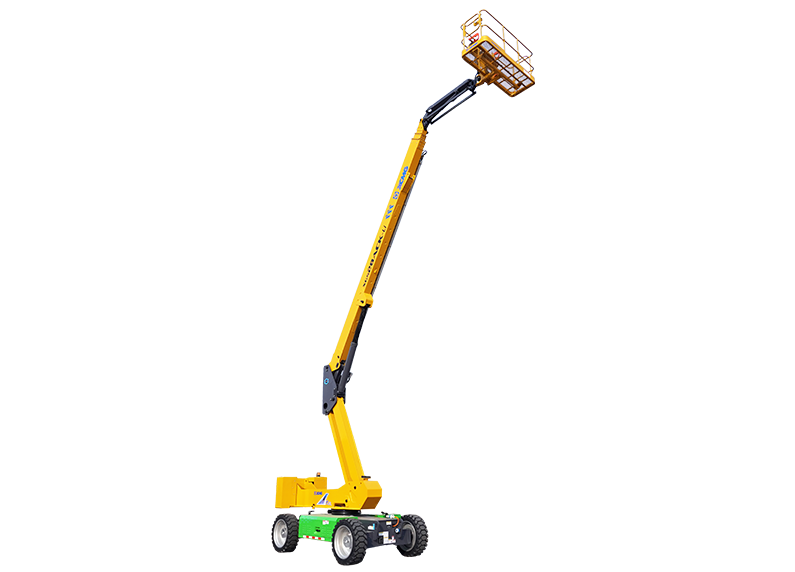

XGS28ACK-Li
XGS28ACK-Li mobile elevating work platform is an innovative electric straight-arm self-propelled mobile elevating work platform with excellent performance, outstanding efficiency, powerful drive and easy operation. It has industry-leading load capacity, working height and amplitude to meet the needs of large load and large working surface construction.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Working Height | mm | 28800 |
| Lift capacity | kg | 300kg(unlimited)/460kg(limited) |
| Weight | kg | 16600 |
| Overall dimension-Stowed | mm | 11690x2490x2930 |
| Overall dimension-Transportation | mm | 11460x2490x3000 |
| Dimension of working platform | mm | 2440x910x1150 |
| Wheelbase | mm | 3200 |
| Fly jib length | mm | 1850 |
| Ground clearance | mm | 320 |
| Max.Platform height | m | 26.8 |
| Max.Working range | m | 22 |
| Max.Occupants | – | 3 |
| Max.Working slope | – | X-3°/ Y-3° |
| Telescopic boom luffing range | – | -4°~ +73° |
| Flying jib luffing range | – | -65°~ +70° |
| Turntable rotation | – | 360° |
| Platform rotation | – | 160° |
| Drive speed | stowed | 6km/h |
| Drive speed | Up or extended | 0.6km/h |
| Min.Turning radius | inside/outside | 3360mm/669mm |
| Turntable tailswing | stowed | 1809mm |
| Max.Gradeability | – | 45% (24°) |
