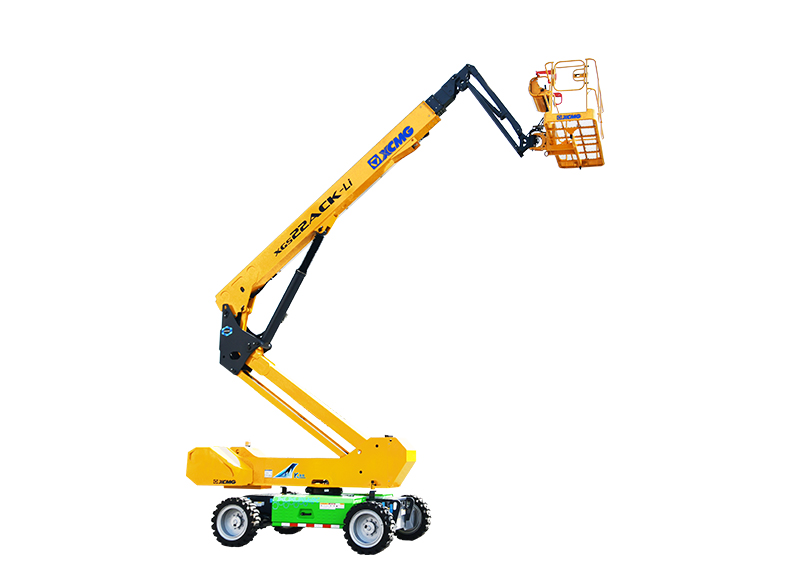

XGS22ACK
XGS22ACK & XGS22ACK-Li mobile elevating work platform is an innovative electric straight-arm self-propelled mobile elevating work platform with excellent performance, outstanding efficiency, powerful drive and easy operation. The platform has industry-leading load capacity, working height and range, which can meet the demand of large load and large working surface construction.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Working Height | mm | 22900 |
| Lift capacity | kg | 300 kg (unlimited) |
| Weight | kg | 10500 |
| Overall dimension-Stowed | mm | 9260x2490x2720 |
| Overall dimension-Transportation | mm | 6790x2270x3000 |
| Dimension of working platform | mm | 2440x910x1150 |
| Wheelbase | mm | 2500 |
| Fly jib length | mm | 1850 |
| Ground clearance | mm | 300 |
| Max.Platform height | m | 20.9 |
| Max.Working range | m | 15.4 |
| Max.Occupants | – | 3 |
| Max.Working slope | – | X-5°/Y-5° |
| Telescopic boom luffing range | – | -5～+75° |
| Flying jib luffing range | – | -65～+70° |
| Turntable rotation | – | 360° |
| Platform rotation | – | 160° |
| Drive speed | stowed | 5km/h |
| Drive speed | Up or extended | 0.6 km/h |
| Min.Turning radius | inside/outside | 3500mm/5500mm |
| Turntable tailswing | stowed | 1710mm |
| Max.Gradeability | – | 40% (22°) |
