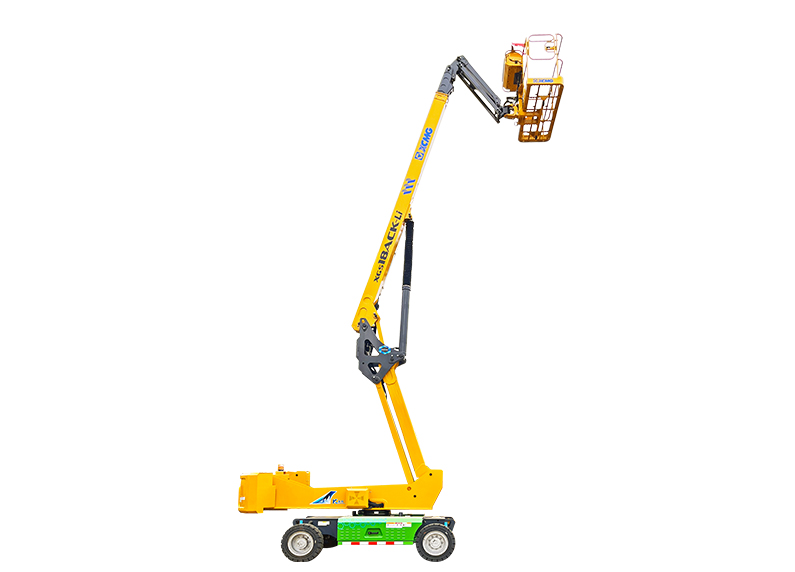

XGS18ACK
XGS18ACK&XGS18ACK-LI mobile elevating work platform is equipped with non-marking off-road tires and axle balancing system as standard, which is applicable to all kinds of outdoor road conditions; Green environmental protection, zero emission, low noise, non-marking driving, which is applicable to indoor construction work in a clean environment.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Working Height | mm | 18280 |
| Lift capacity | kg | 300(unlimited) |
| Weight | kg | 8200 |
| Overall dimension-Stowed | mm | 9150x2320x2520 |
| Overall dimension-Transportation | mm | 7500x2320x2600 |
| Dimension of working platform | mm | 1830x760x1150 |
| Wheelbase | mm | 2360 |
| Fly jib length | mm | 1420 |
| Ground clearance | mm | 240 |
| Max.Platform height | m | 16.28 |
| Max.Working range | m | 12.05 |
| Max.Occupants | – | 2 |
| Max.Working slope | – | X-5°/Y-5° |
| Telescopic boom luffing range | – | -8°～+73.5° |
| Flying jib luffing range | – | -60°~70° |
| Turntable rotation | – | 360° |
| Platform rotation | – | 160° |
| Drive speed | stowed | 5.5 km/h |
| Drive speed | Up or extended | 0.6 km/h |
| Min.Turning radius | inside/outside | 3200mm/4700 mm |
| Turntable tailswing | stowed | 1520 mm |
| Max.Gradeability | – | 45% (24°) |
