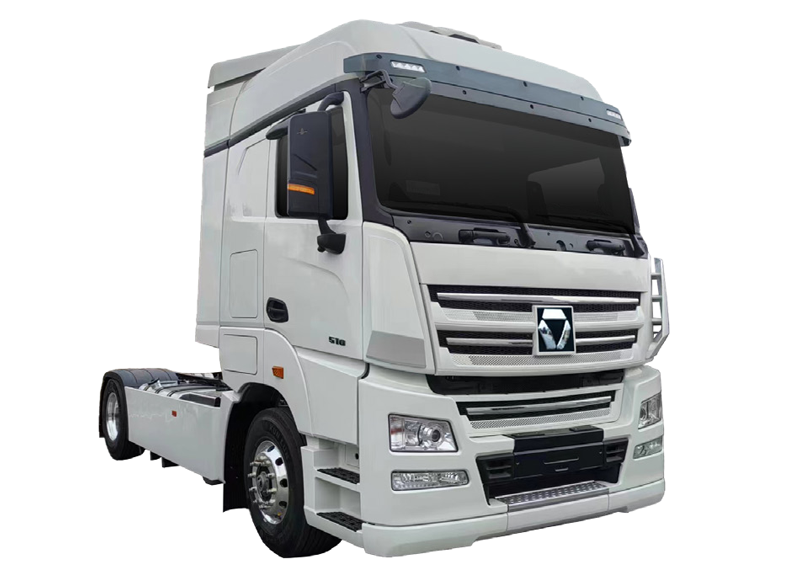

XGA4183D6WA
The golden power chain combination of international top brand Cummins + ZF + Mercedes-Benz axle is used, so the PTO is strong. XGA4183D6WA Tractor is equipped with the core confguration of top brands in the industr, such as Cummins 510hp engine, ZF AMT and Mercedes-Benz axle to provide strong PTO, frst-class quality, reliable use, and worr-free spare pars and after-sale guarantee within the sales territor.Adopting 1175L high-endurance dual fuel tank, equipped with 4-airbag rear suspension, comforable riding, the overall design can adapt to multiple complicated conditions.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Drive Type | – | 4×2 |
| Kerb Mass | kg | 7500 |
| GVW | kg | 45000 |
| Max. Speed | km/h | 110 |
| Min. Turning Diameter | m | 14.44 |
| Grade Ability | – | ≥45% |
| Fuel Tank | L | 610+565 |
| Dimension | mm | 6170×2550×3970 |
| Wheelbase | mm | 3900 |
| Min. Clearance | mm | 260 |
| Approach Angle | – | 17° |
| Departure Angle | – | 28° |
| Cabin Model | – | XG1-H |
| Left/Right Driving | – | LHD |
| AC | – | Standard |
| Person Allowed in | – | 2 |
| Engine Model | – | X13EVIE510 |
| Emission Standard | – | EUR V |
| Displacement | L | 12.9 |
| Output Power | KW | 375 |
| Max Torque Speed | km/h | 2500/(1000-1400)N·m |
| Transmission Model | – | 12TX2621TD |
| PTO | – | QH50 |
| Front Axle Model | – | 7.5t |
| Rear Axle Model | – | 13T |
| Main Reducer Ratio | – | 3.364 |
| Rim | – | 22.5×9.00 |
| Tire | – | 315/80R22.5 |
