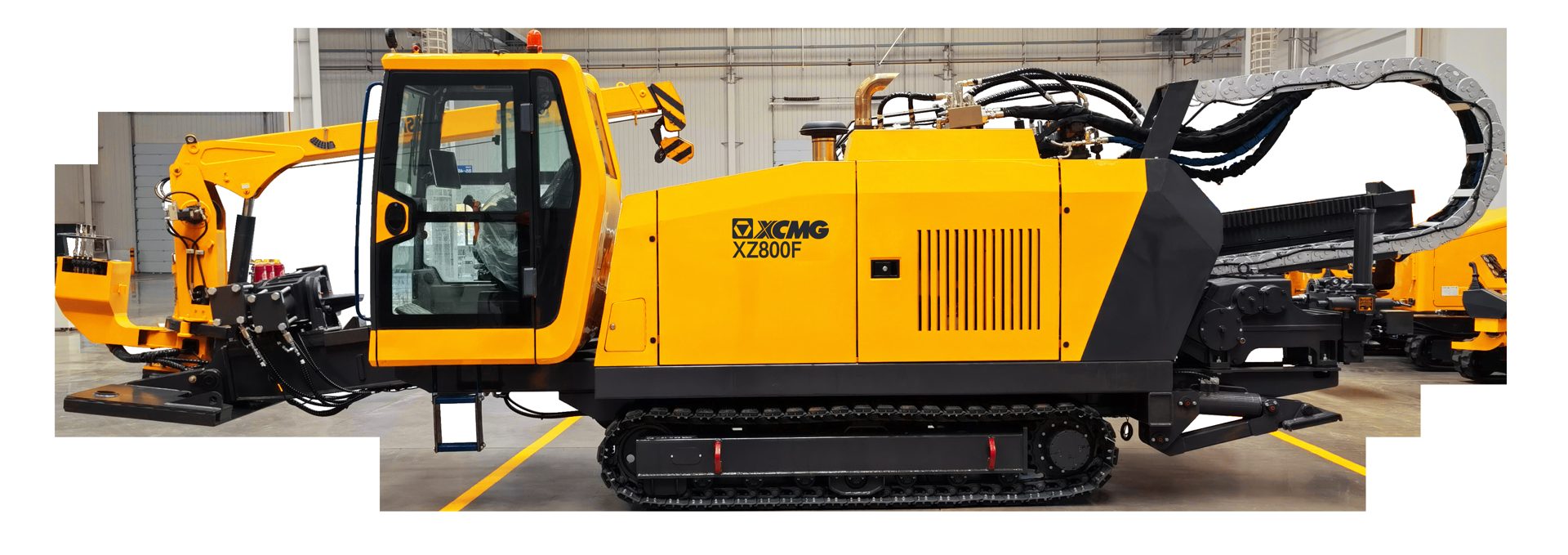

XZ800F
The medium-tonnage drilling rig can be used in municipal engineering, and can also be used to construct some oil and gas pipelines and in hard rock construction conditions. The medium-tonnage drilling rig is equipped with cab and auxiliary crane as standard.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | / | Cummins |
| Rated power | kW | 220 |
| Power head Max. thrust-pull force | kN | 800 |
| Power head Max. thrust-pull speed | m/min | 55 |
| Power head Torque | N·m | 35000 |
| Power head Max. rotation speed | r/min | 120 |
| Mud pump Max. flow | L/min | 600 |
| Mud pump Max. pressure | MPa | 10 |
| Crane Lifting weight | t | 2 |
| Crane Lifting moment | t•m | 4 |
| Recommended drill pipe | mm×m | φ102×4.5 |
| Max. entry angle | ° | 20 |
| Max. back reaming diamete | mm | 1200 |
| Weight | t | 18 |
| Outline dimensions | mm | 10650×2450×2640 |
