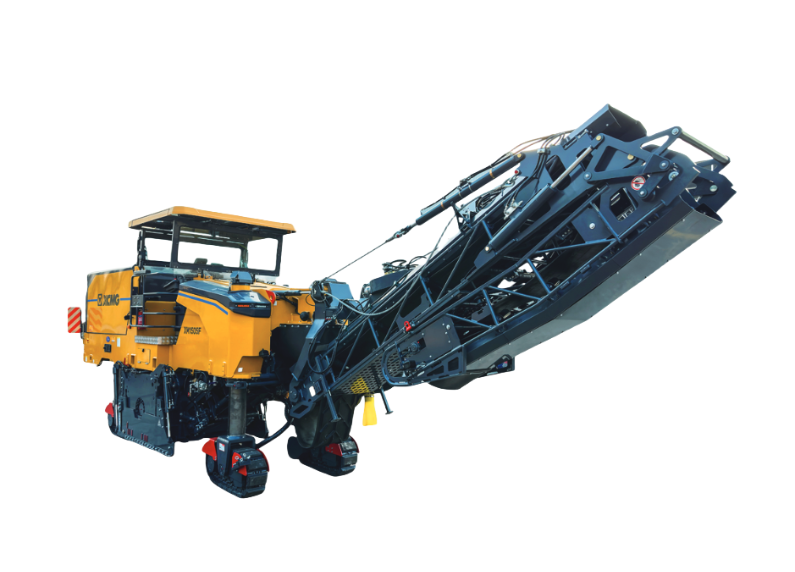

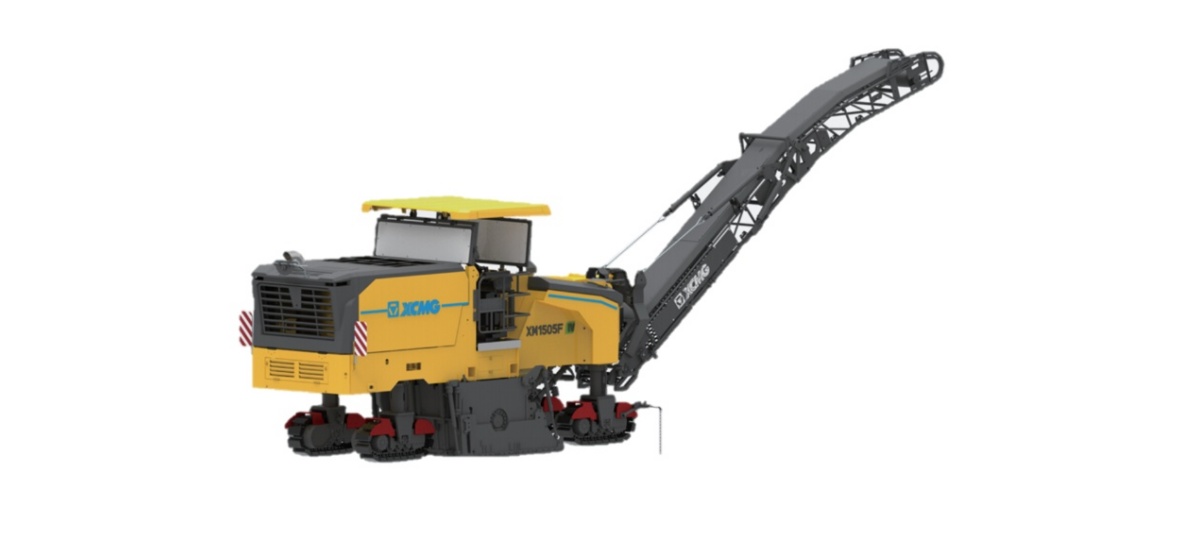

XM1505F
XM1505F milling machine is an asphalt pavement maintenance construction machine, which is mainly used for maintenance work of municipal roads, repair of rural roads, as well as overhaul construction and large-depth digging and patching work of roads. This milling machine couples the characteristics of large-sized milling machines and small and medium-sized milling machines, with a standard working width of 1.5m, and can also be equipped with a wider milling rotor to realize bigger working width.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Cummins |
| Rated Power | kW | 164 |
| Emission | – | EC StageIIIA/US Tier3/China Stage III |
| Weight in transportation state | kg | 22000 |
| Weight in work state | kg | 20500 |
| Milling width | mm | 1500 |
| Max.Milling Depth | mm | 330 |
| Number of cutters | – | 118 |
| Transport Dimensions / L x W x H | mm | 11200 x 2320 x 3000 |
Gallery
