XM1005K

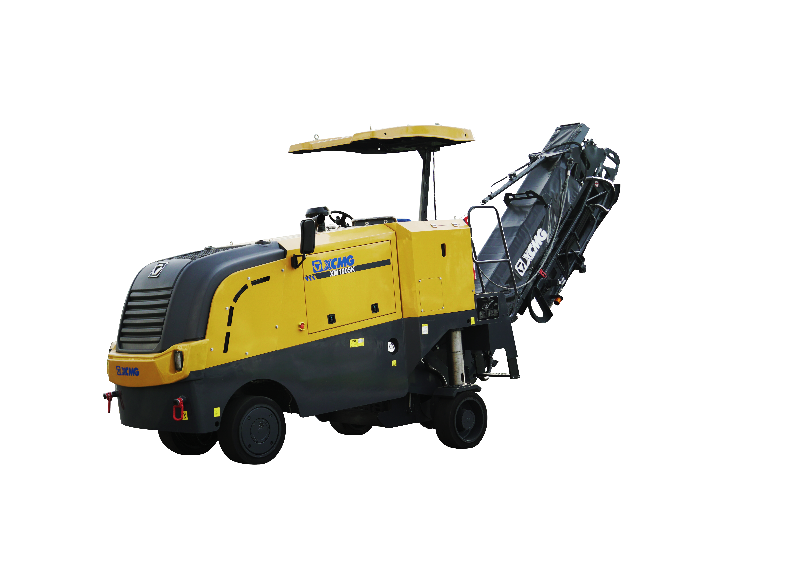

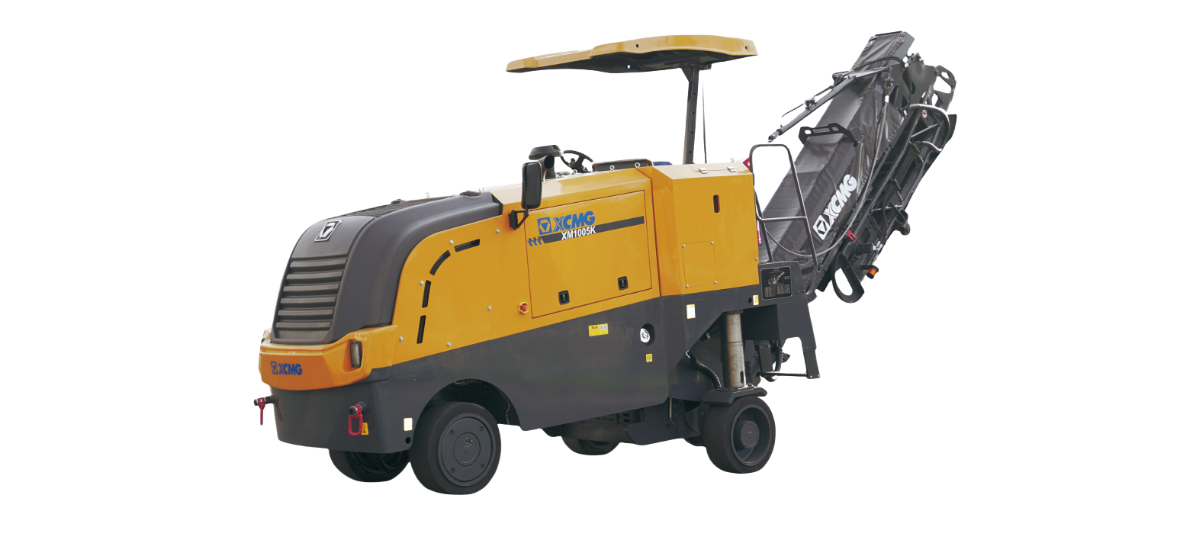

XM1005K milling machine is a kind of medium-sized milling machine with high performance, which is mainly used for excavation and renovation of asphalt concrete pavements of highways, urban roads, airports, freight yards, parking lots etc.It can efficiently remove road congestion, waves, mesh patterns, ruts, etc.; excavate the pavement pits and trenches; roughen the cement pavement and mill the surface faulting. This machine has high work efficiency, high level of intelligence, long working cycle, and good maneuverability, reliability and maintenance, and the overall technical performance has reached the international advanced level.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Shangchai |
| Rated Power | kW | 177 |
| Emission | – | EC Stage ⅢA / CN Stage Ⅲ |
| Weight in transportation state | kg | 14000 |
| Weight in work state | kg | 14700 |
| Milling width | mm | 1000 |
| Max.Milling Depth | mm | 300 |
| Number of cutters | – | 80 |
| Transport Dimensions / L x W x H | mm | 9575 x 2295 x 2690 |
