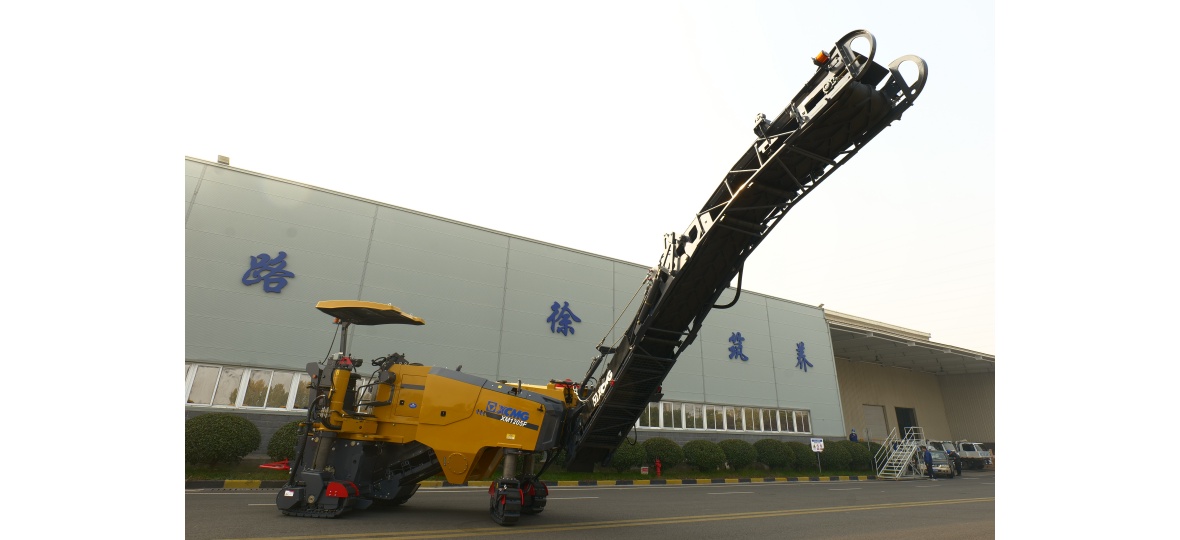

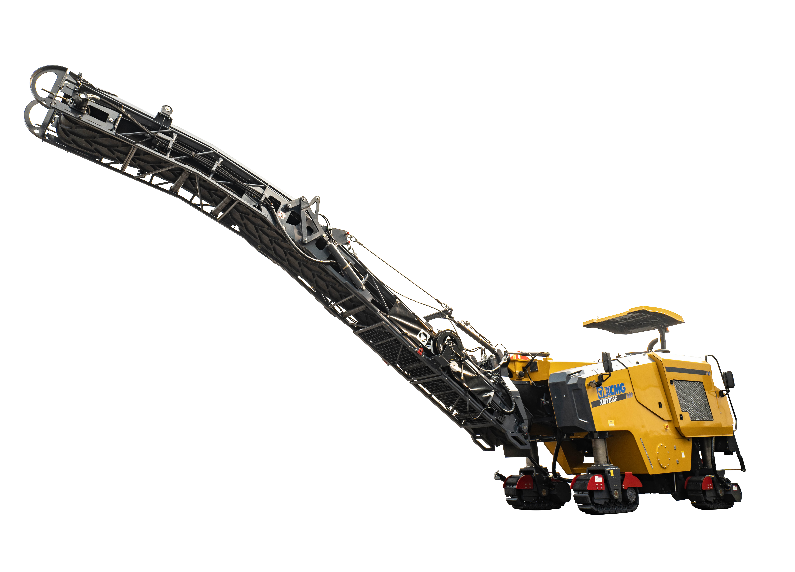

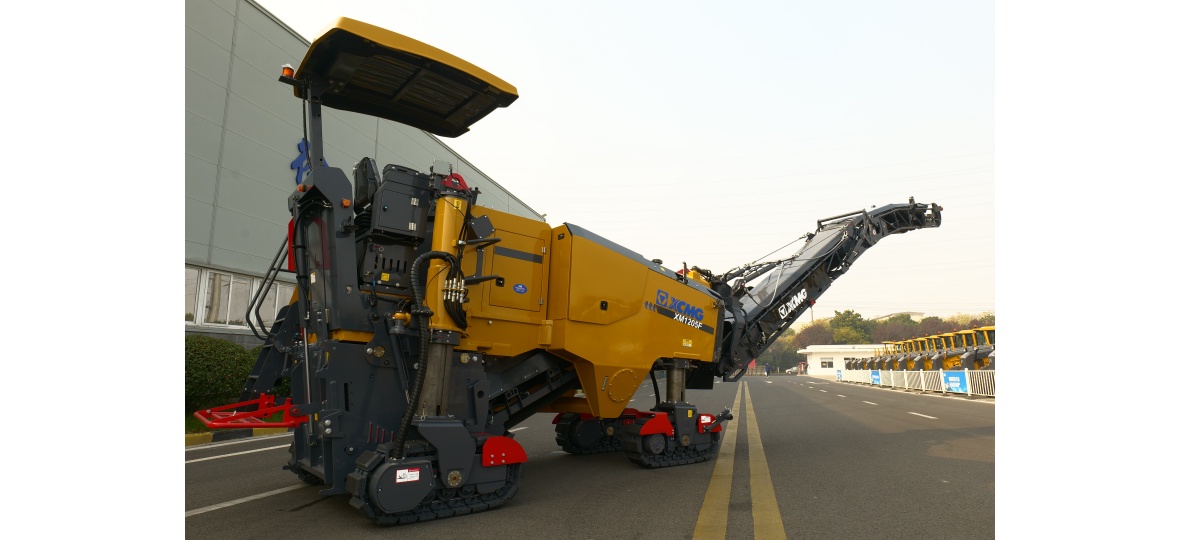

XM1205F
XM1205F milling machine is a kind of front-conveying medi-um-sized milling machine with high performance,which is mainlyused for excavation and renovation of asphalt concrete pave-ments of highways,urban roads,airports,freight yards,parkinglots,etc.It can efficiently remove road congestion,waves,meshpatterns,ruts,etc.;excavate the pavement pits and trenches;roughen the cement pavement and mill the surface faulting. This machine adopts various advanced technologies of intelligentcontrol,limit load,water sprinkling intelligent control, engine hightemperature protection and construction data management etc.Itis a kind of pavement maintenance equipment with advancedtechnologies,high working efficiency,convenient operation andhigh reliability.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Shangchai |
| Rated Power | kW | 192 |
| Emission | – | EU Stage 4a/CN Stage Ⅲ |
| Weight in transportation state | kg | 20000 |
| Weight in work state | kg | 21500 |
| Milling width | mm | 1200 |
| Max.Milling Depth | mm | 300 |
| Number of cutters | – | 100 |
| Transport Dimensions / L x W x H | mm | 9950×2180×3000 |
Gallery
