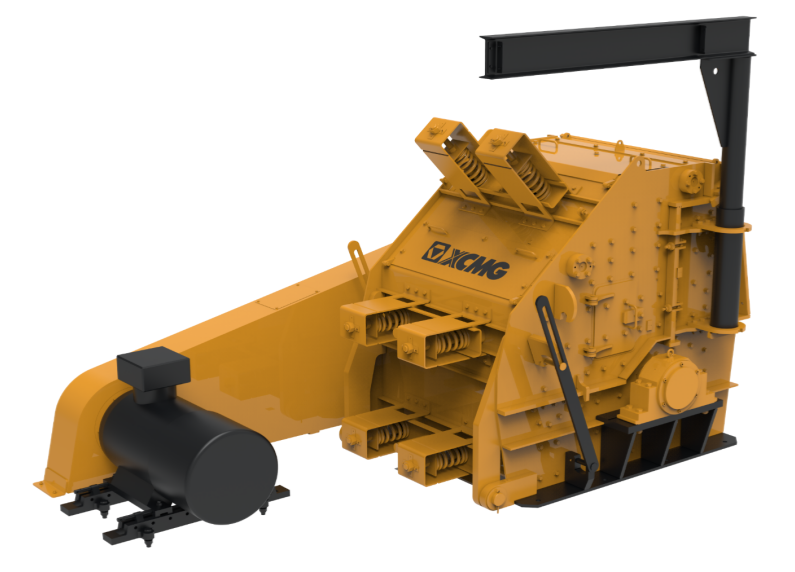

XGF1320
XGF1320 impact crushing station is independently developed by XCMG based on of years of R&D experience and can be used to break natural stones with medium and soft hardness and recycle construction waste. It is characterized by stability, flexibility, efficiency and intelligence.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Hardness of crushed materials | MPa | ≤150 |
| Max. feedstock size | mm | 400 |
| Feed inlet dimensions | mm | 2090 × 950 |
| Range of discharge opening | mm | 0~40(70%-85%) |
| Productivity | t/h | 300~500 |
| Driving type | – | Motor + narrow V belt |
| Number of narrow V-belts | – | 16 |
| Motor power | kW | 2×160 |
| Overall weight | t | 30.2 |
| Overall dimensions | mm | 4450 × 3434 × 2900 |
