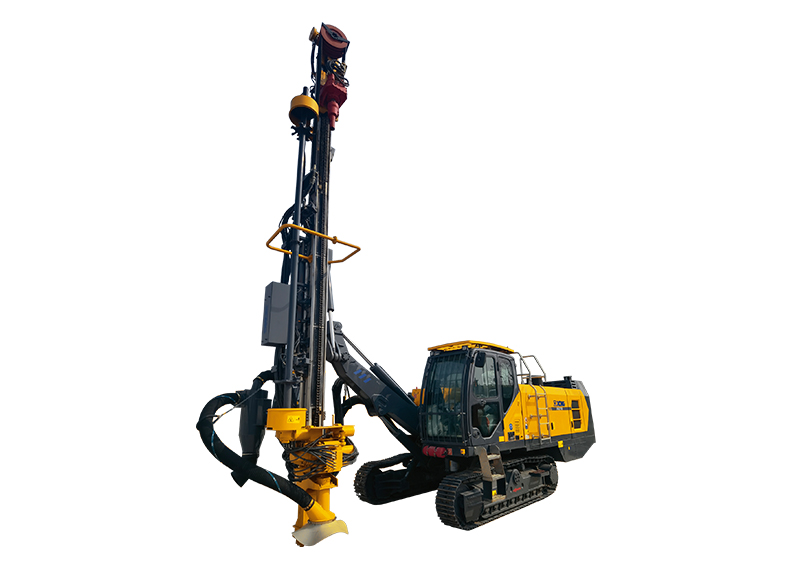

XQZ152
XQZ152 surface down-the-hole drill rig is a medium-sized integrated down-the-hole drilling machine mainly developed for quarries, cement mines, open-pit mines and other mines, which can complete the drilling of main blasting holes and pre-splitting holes. It has the characteristics of large drilling diameter, high drilling efficiency, wide application range, etc.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Drilling diameter | mm | Ф90-Ф152 |
| Max. hole depth | m | 35 |
| Rated power | kW | 264 |
| Engine | – | Cummins QSL8.9-C360 |
| Emission standard | – | CN III |
| Air volume | m³/h | 19.5 |
| Air compressor | – | Atlas Copco |
| Rotary torque | N·m | 4100 |
| Rotary speed | rpm | 108 |
| Weight | kg | 22000 |
| Transport dimensions | mm | 11200×2700×3560 |
