XQZ130

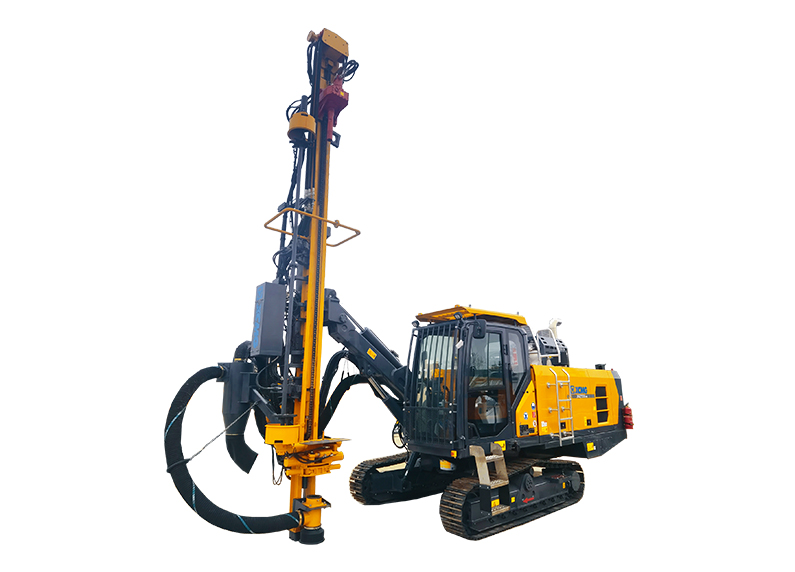

XQZ130 surface down-the-hole drill rig is a small-sized integrated down-the-hole drilling machine mainly developed for quarries, cement mines and other mines, which can complete the drilling of main blasting holes and pre-splitting holes. It has the characteristics of high drilling efficiency, wide application range, etc.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Drilling diameter | mm | Ф90-Ф130 |
| Max. hole depth | m | 28 |
| Rated power | kW | 242 |
| Engine | – | Cummins QSL8.9-C325 |
| Emission standard | – | CN III |
| Air volume | m³/h | 16.9 |
| Air compressor | – | JIUYI |
| Rotary torque | N·m | 2865 |
| Rotary speed | rpm | 110 |
| Weight | kg | 17000 |
| Transport dimensions | mm | 9980×2500×3300 |
