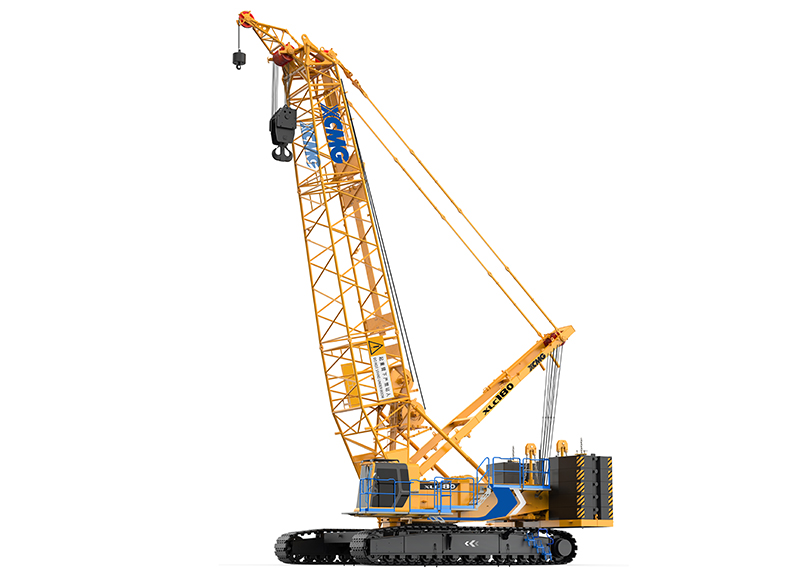

XLC180
XLC180 is a crawler crane with strong lifting performance. The working condition performance of medium and long boom is 5% ~ 10% higher than that of competing products. The unique systematic and modular boom universal design forms seven categories of working condition configuration, which is the most complete in the industry and the most widely adaptable to product engineering.Floating platform working condition can be selected.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Boom working condition max. rated lifting capacity | t | 180 |
| Max. load moment | t.m | 1050 |
| Max.boom length | m | / |
| Boom length | m | 17-83 |
| Light boom length | – | / |
| Fixed jib length | m | 9-30 |
| Tower jib length | – | 18-51 |
| Max. dimension of single unit in transport state:L×W×H | m | 10.0×3.0×3.3 |
| Hoist winch max. single line speed | m/min | / |
| Engine model | – | weichai |
| Rated power | kw | 247 |
| Total vehicle mass | Main hook block, 19m boom | 150 |
| Max. mass of single unit in transport state | t | 29.7 |
