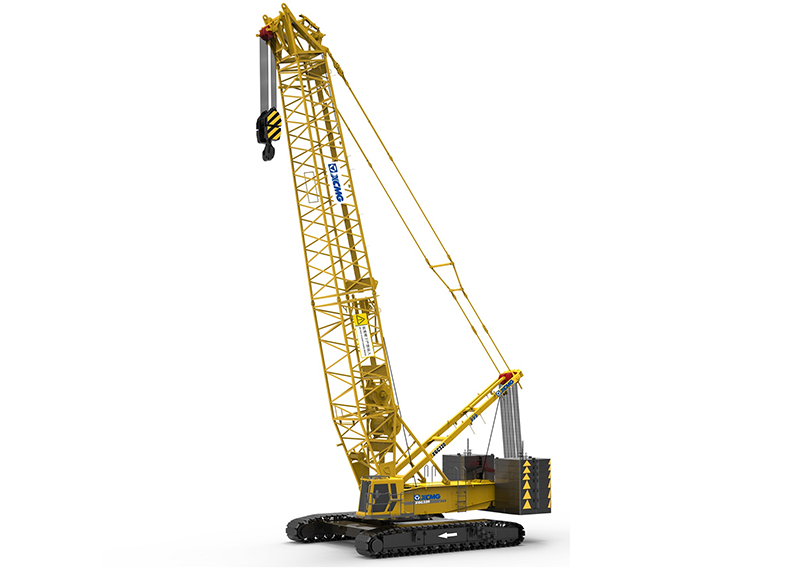

XGC320
The XGC320 crawler crane has developed a special design for shield tunneling conditions under the premise of meeting conventional functions. A single machine can meet the requirements of subway shield hoisting, and the double-hook compound is capable of hoisting and turning over shield equipment with a diameter of 6m to 8m.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Boom working condition max. rated lifting capacity | t | 320 |
| Max. load moment | t.m | 1870 |
| Max.boom length | m | / |
| Boom length | m | 24-88 |
| Light boom length | – | 65.5-107.5 |
| Fixed jib length | m | / |
| Tower jib length | – | 24-42 |
| Max. dimension of single unit in transport state:L×W×H | m | 11.12×3.0×3.3 |
| Hoist winch max. single line speed | m/min | / |
| Engine model | – | weichai |
| Rated power | kw | 247 |
| Total vehicle mass | Main hook block, 19m boom | 260 |
| Max. mass of single unit in transport state | t | 36.2 |
