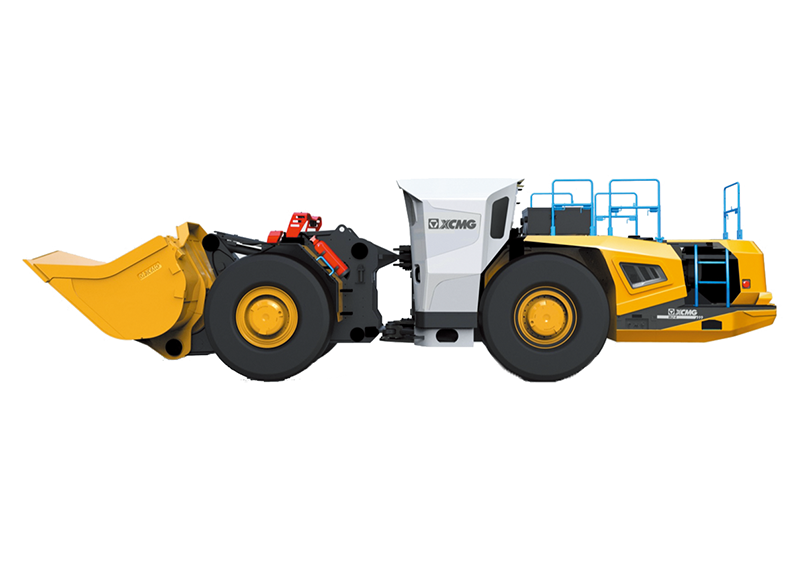

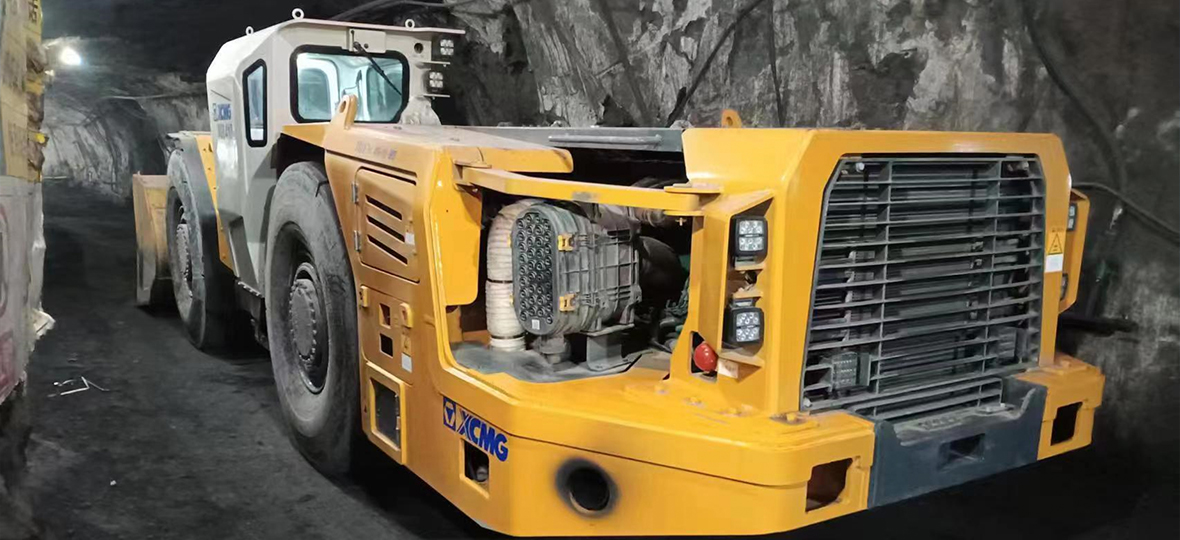

XUL410
PRODUCT FEATURE: XUL410 underground loader LHD is suitable for loading, hauling and dumping of materials in mine tunnels and other small tunnels in non-explosive environments, and can meet the loading requirements of mining trucks within 30t during underground mining. This machine can adapt to humid and dusty environments of 4.1m×4.1m tunnels in underground mines. It is highly intelligent, safe, reliable and stable during operation, which can greatly improve the productivity and profitability of underground mines.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Rated bucket capacity | m³ | 4/4.5 |
| Rated loading capacity | t | 10 |
| Maximum breakout force | kN | 190 |
| Maximum traction force | kN | 230 |
| Engine | – | TAD1150VE / TAD883VE |
| Emission standard | – | EU Ⅲ / EU Ⅴ |
| Ratoed power | kW | 235 |
| Maximum traveling speed | km/h | 24.5 |
| Minimum turning radius | inner side/outer side | 3270 / 6480 |
| Transport dimensions | L×W×H | 9930×2580×2380 |
| Total weight | t | 29.6±0.5 |
Gallery
