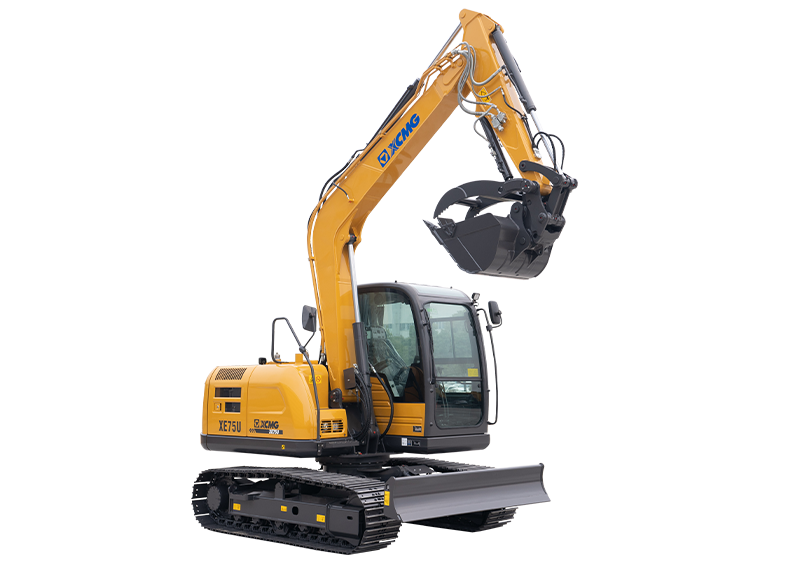

XE75U
The XE75U hydraulic excavator is highly applicable for hydropower, transportation, municipal, garden, farmland reconstruction, oil pipelineand other small-scale construction. Designed features: suitable for suburban and narrow space; ambient temperature: -15'C~40'C; Working objects: soil below grade lll and loose materials. Powered by a reliable 60.3 hp kubota engine, you can count on it to finish tough jobs in various operating conditions. When it comes to efficiency, versatility is a critical factor. That's why the machine is compatible to multiple attachments that can be installed within a short period of time with its hydraulic quick coupler. You will make full use of every second in the jobsite.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | Kg | 7700 |
| Rated power | kW/rpm | 45 |
| Engine model | – | Kubota V2607 |
| Bucket capacity | m³ | 0.33 |
| Emission standard | – | Tier 4 Final |
| Maximum torque/speed | N.m | 225.8/1500 |
| Displacement | L | 3.3 |
| Travel speed | km/h | 4.3/2.7 |
| Swing speed | r/min | 11 |
| Bucket digging force | kN | 57 |
| Arm digging force | kN | 38 |
