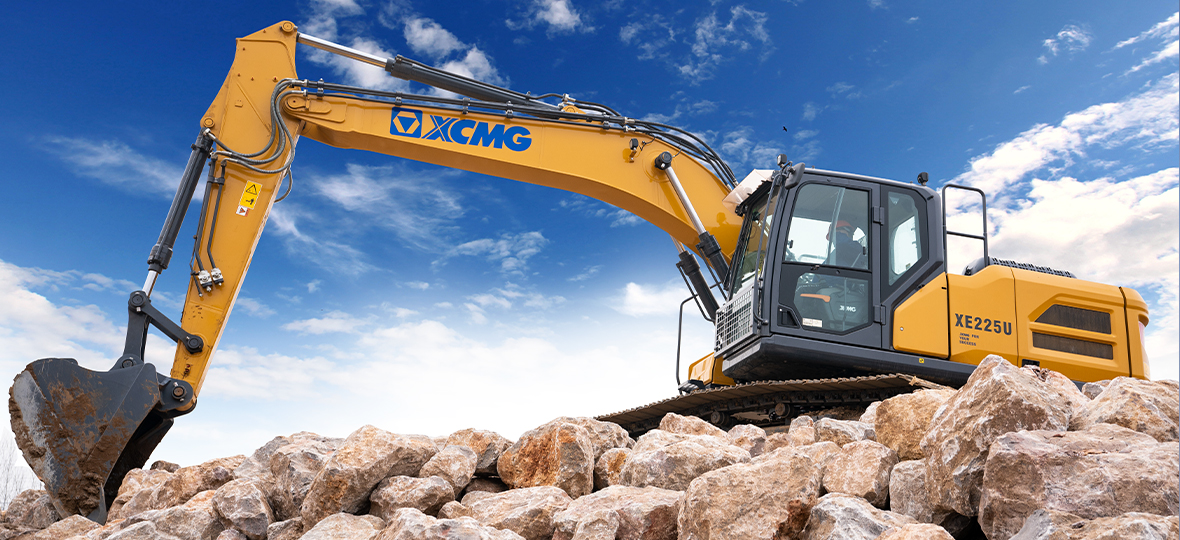

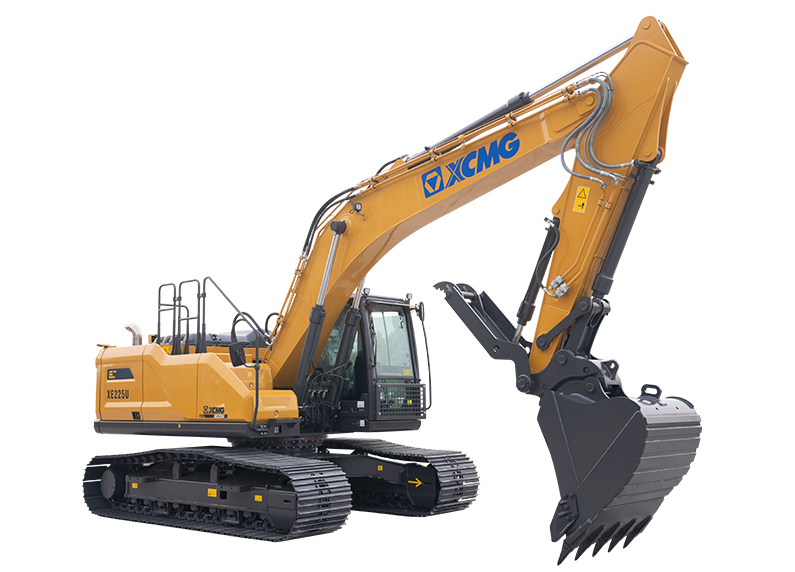

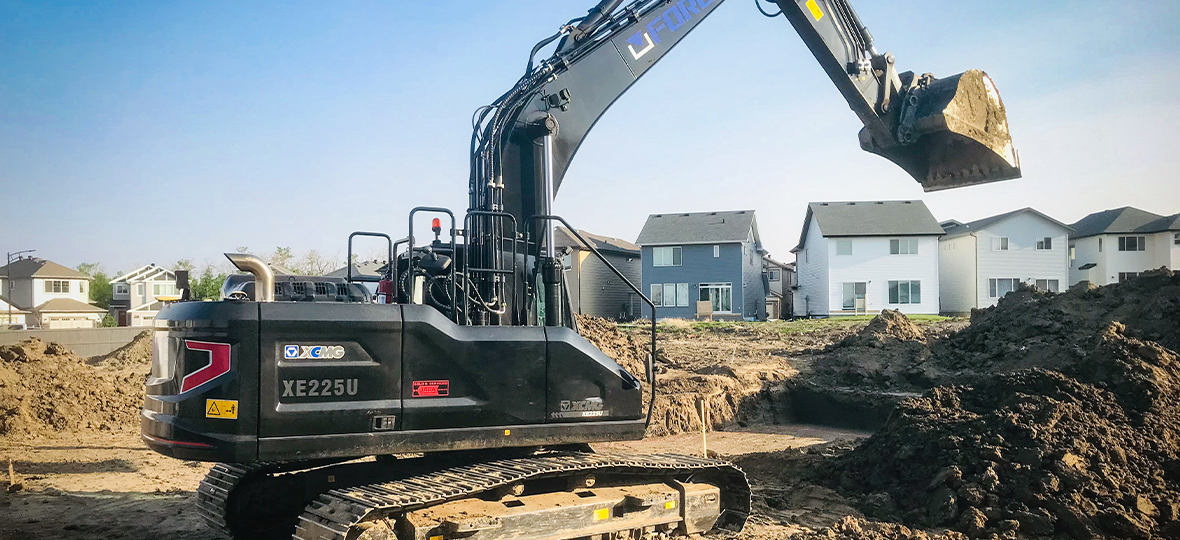

XE225U
The newly upgraded XE225U builds on its reputation as one of the mostsold and appreciated excavators of XCMG. All features have been desianed based on evaluation of customer demands including sufficient power and hydraulic flow, versatility, low fuel consumption and emissions.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | Kg | 23500 |
| Rated power | kW/rpm | 129 |
| Engine model | – | Cummins B6.7 |
| Bucket capacity | m³ | 1.2 |
| Emission standard | – | Tier 4 Final |
| Maximum torque/speed | N.m | 881/1500 |
| Displacement | L | 6.7 |
| Travel speed | km/h | 5.4/3.5 |
| Swing speed | r/min | 11.8 |
| Bucket digging force | kN | 149 |
| Arm digging force | kN | 111 |
