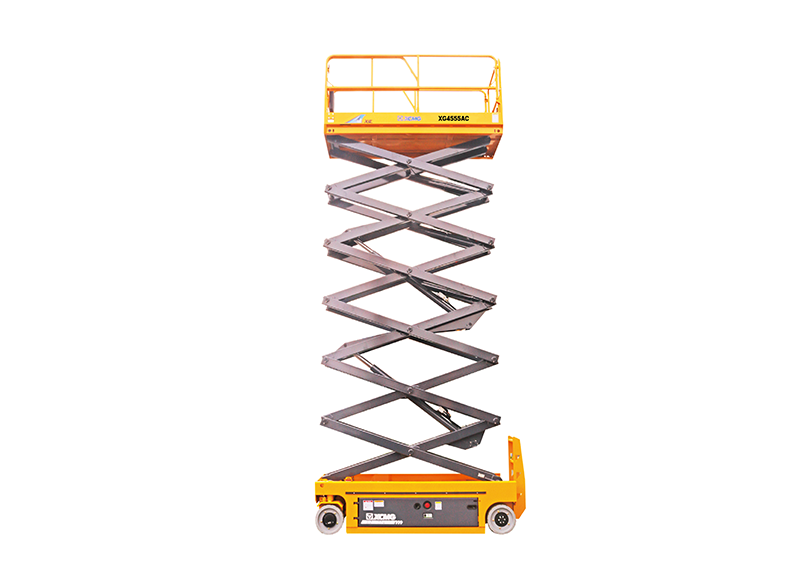

XG4555AC-ANSI
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Max. Working Height | ft | 51’10” |
| Max. Platform Height | ft | 45’3” |
| Max. driving speed | mph | 2.48(lowered)/0.5(elevated) |
| Min. turning radius | ft | 0(Inner wheel)/8’8”(Outer wheel) |
| Min. ground clearance | in | 3 |
| Rated load | lbs | 771.6 |
| Max. Grade Ability | % | 25 |
| Wheel Base | ft | 7’4” |
| Total Weight | lbs | 8113 |
