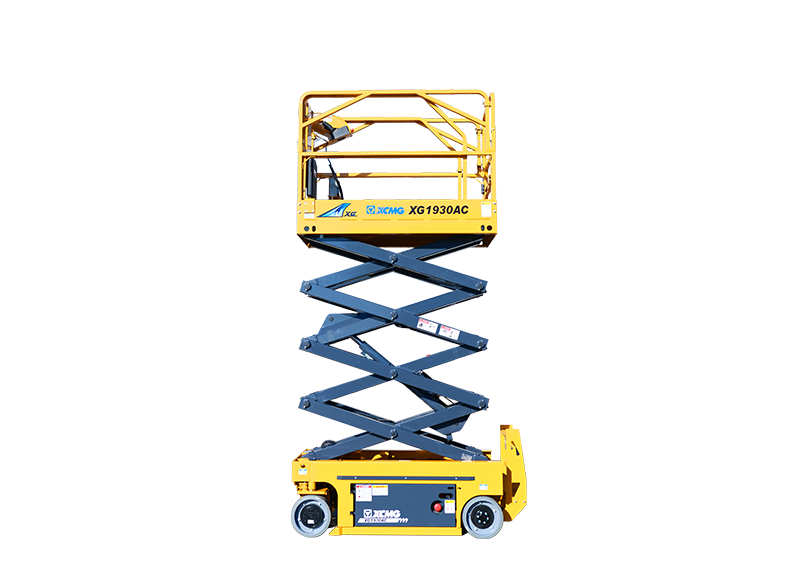

XG1930AC-ANSI
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Max. Working Height | ft | 25’7” |
| Max. Platform Height | ft | 19′ |
| Max. driving speed | mph | 2.79(lowered)/0.5(elevated) |
| Min. turning radius | ft | 0(Inner wheel)/5’9”(Outer wheel) |
| Min. ground clearance | in | 3 |
| Rated load | lbs | 507 |
| Max. Grade Ability | % | 25 |
| Wheel Base | ft | 4’6” |
| Total Weight | lbs | 3417.2 |
