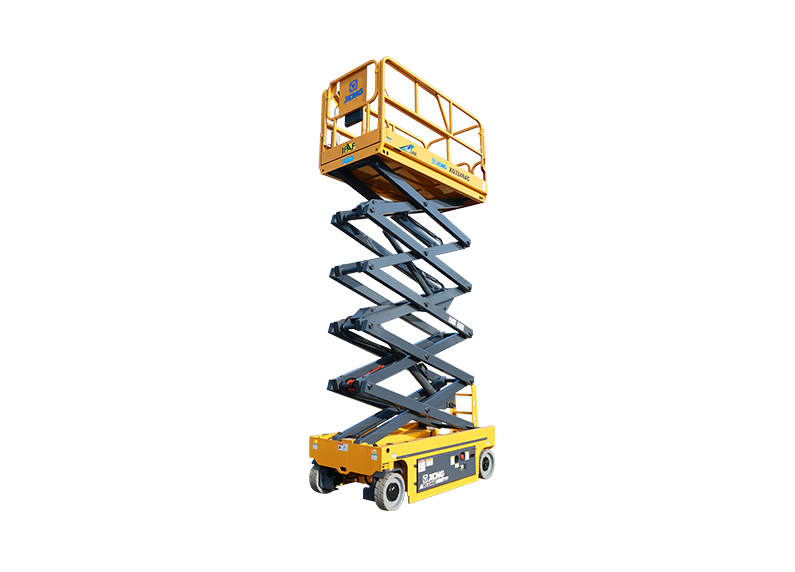

XG3246AC-ANSI
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Max. Working Height | ft | 38’11” |
| Max. Platform Height | ft | 32’4” |
| Max. driving speed | mph | 2.48(lowered)/0.5(elevated) |
| Min. turning radius | ft | 0(Inner wheel)/7’7”(Outer wheel) |
| Min. ground clearance | in | 4 |
| Rated load | lbs | 705 |
| Max. Grade Ability | % | 25 |
| Wheel Base | ft | 6’2” |
| Total Weight | lbs | 6613 |
