XGA16K

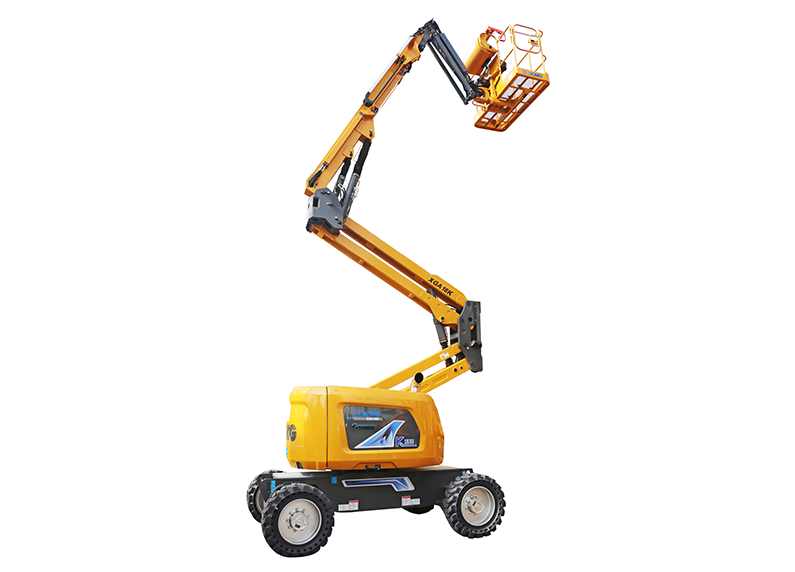

16m (52 ft 6 in) level“ Σ” The Y-shaped linkage folding hybrid arm frame aerial work platform is a compact layout, efficient obstacle crossing, precise design, strong driving, and easy operation curved arm aerial work platform. This model is easy to operate, safe and reliable, precise and efficient, and can widely meet the needs of users in various industries such as construction, steel structures, petrochemicals, venues, and leasing.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Working Height | mm | 16630 |
| Lift capacity | kg | 256(unlimited)/350(limited) |
| Weight | kg | 7600 |
| Overall dimension-Stowed | mm | 6850x2320x2380 |
| Overall dimension-Transportation | mm | 5600x2320x2650 |
| Dimension of working platform | mm | 1830x760x1150 |
| Wheelbase | mm | 2360 |
| Fly jib length | mm | 1420 |
| Ground clearance | mm | 300 |
| Max.Platform height | m | 14.63 |
| Max.Working range | m | 8.82 |
| Max.up and over clearance | m | 7.7 |
| Max.Occupants | – | 2/3 |
| Max.Working slope | ° | X-5°/Y-5° |
| 1st Boom luffing range | ° | 0°～65° |
| 2nd Boom luffing range | ° | -11°～75° |
| Flying jib luffing range | ° | -65°～70° |
| Turntable rotation | ° | 355° |
| Platform rotation | ° | 160° |
| Drive speed | stowed | 5.5 |
| Drive speed | Up or extended | 0.6 |
| Min.Turning radius | inside/outside | 3200/4700 |
| Turntable tailswing | stowed | 0 |
| Max.Gradeability | % | 0.45 |
